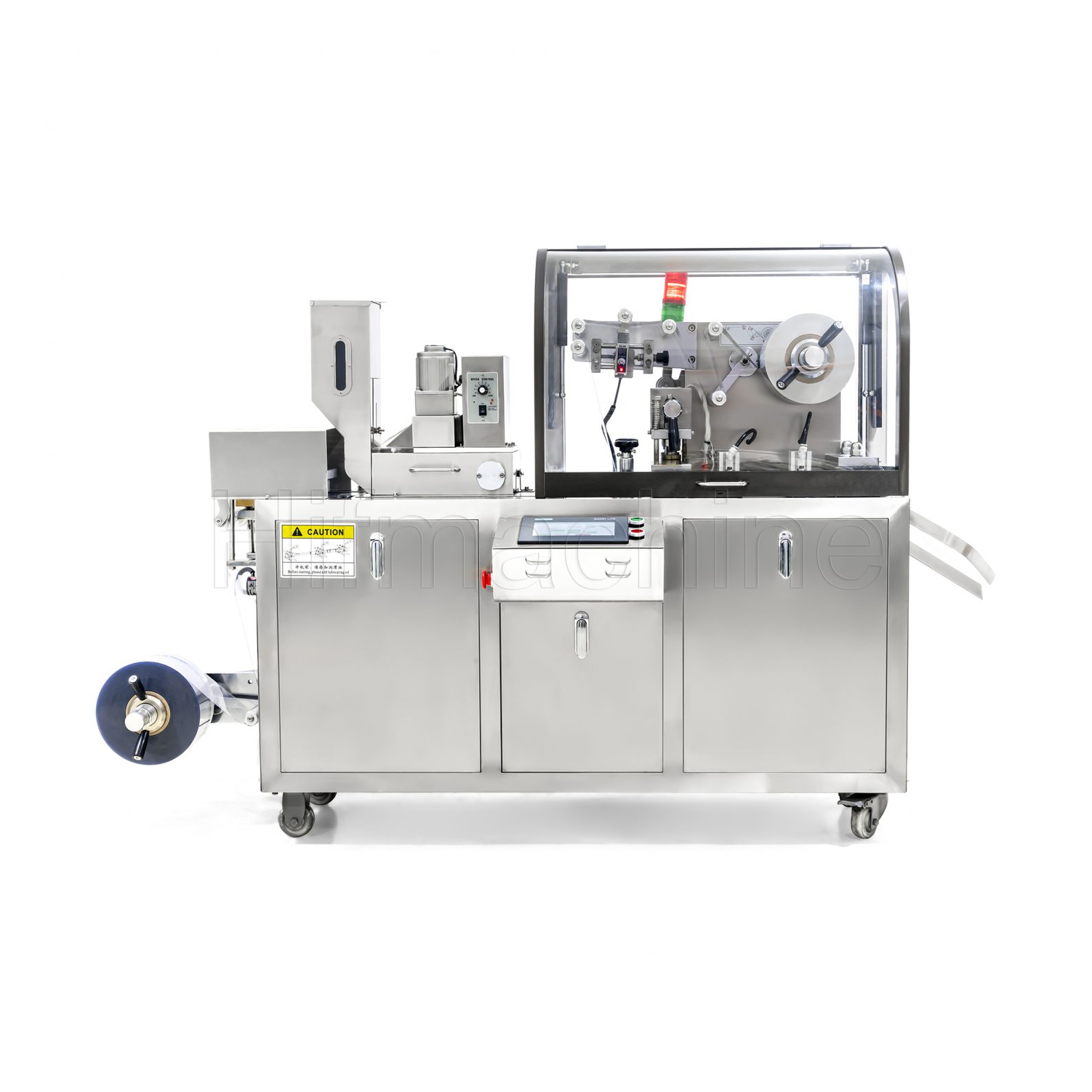

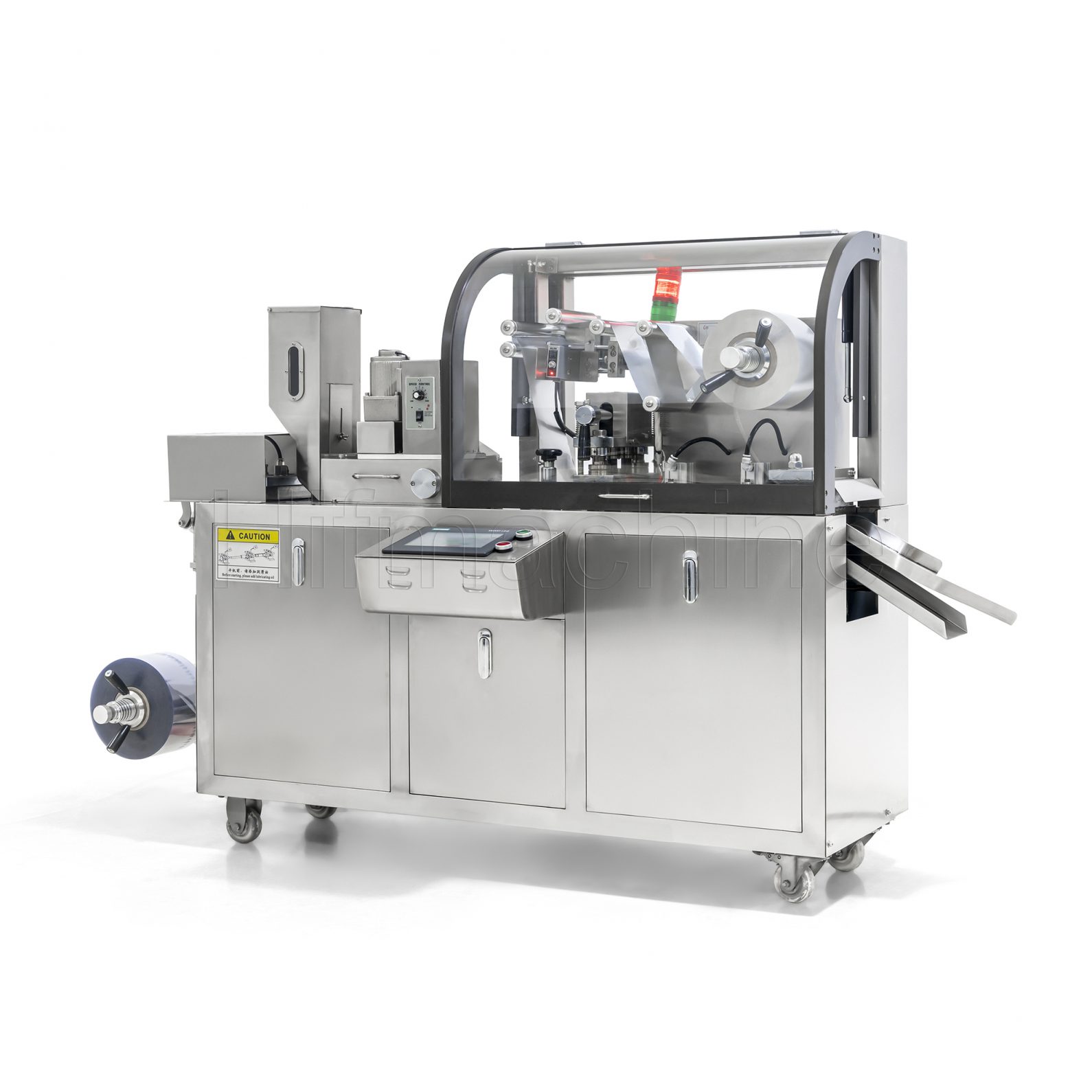

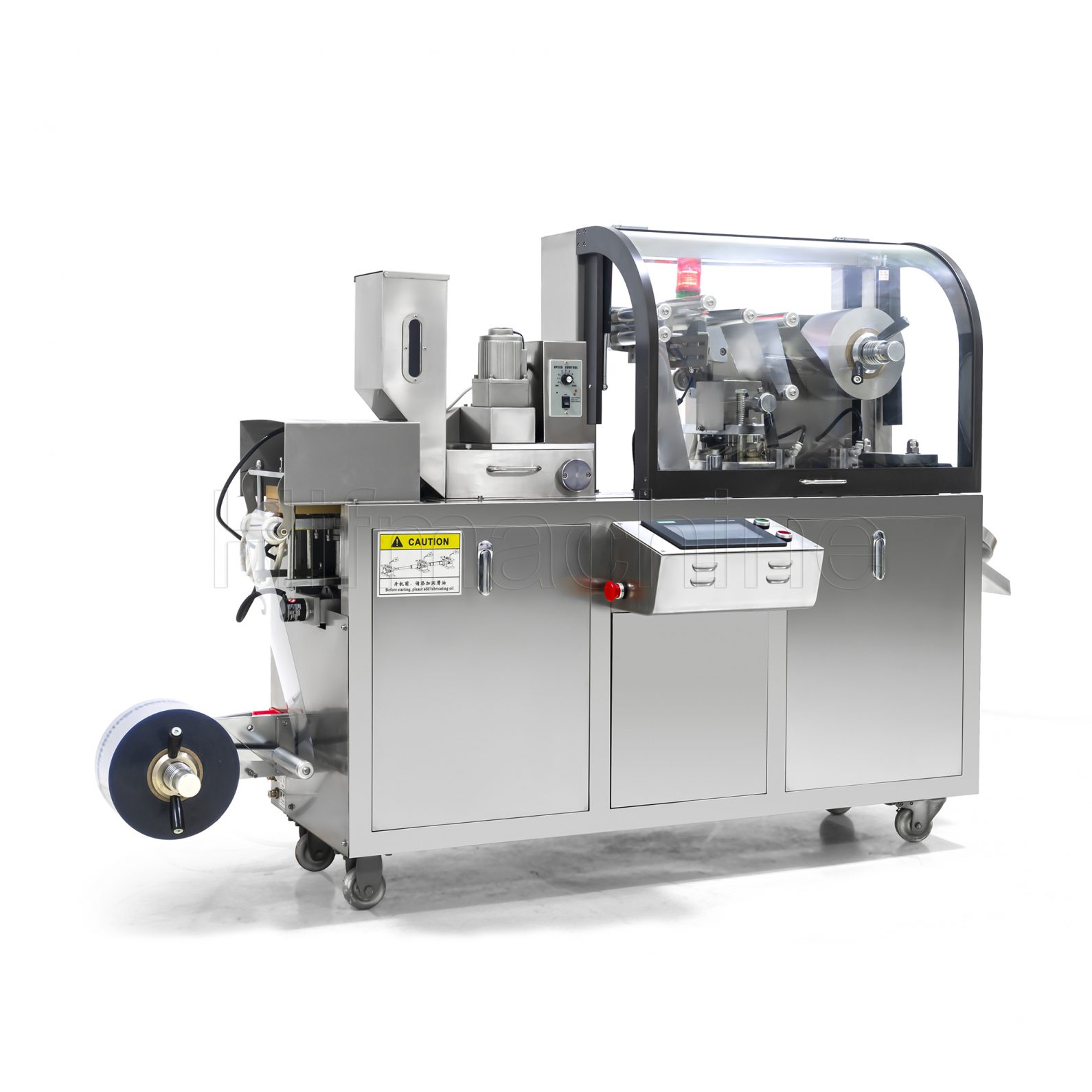

Blister Packing Machine DPP-88/140/160
Blister Packing Machine DPP-88/140/160
The product is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc, it is suitable for the Alu-PVC package of medicine, food, electric parts etc. Aided forming Pre‐cutting Inspection and rejecting control systems. Print mark registration Automatic feeder
Remarks
- Best option for small batches, pharmaceutical R&D and pilot plants.
- It allows forming thermoplastic and cold forming materials (Alu-Alu).
- It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.
- Automation by PLC and operation through touch screen control panel.
- It has pneumatic drives, which lend it high robustness and low maintenance.
- It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.
| Model | DPP-88 | DPP-140 | DPP-160 |
|---|---|---|---|
| Cutting frequency | Al-Al: 6-20; Al-plastic: 20-40 times/min | 10-50 times/min | 10-50 times/min |
| Capacity | Al-Al: 1200; Al-plastic: 2400 (plates/h) | 7200 strips/h | 7200 strips/h |
| Max shaping areas/depth | Al-Al: 80×100×14; Al-plastic: 80×110×26 mm | 140×120×28 mm | 140×120×28 mm |
| Air pressure | 0.4-0.6 MPa | 0.4-0.6 MPa | 0.4-0.6 MPa |
| Power supply | 380V/220V 50Hz | 380V/220V 50Hz | 380V/220V 50Hz |
| Main motor power | 0.75 kW | 1.1 kW | 1.1 kW |
| PVC hard pieces | 0.15-0.5×100 mm | 0.15-0.5×140 mm | 0.15-0.5×140 mm |
| PTP aluminum foil | 0.02-0.035×100 mm | 0.02-0.035×140 mm | 0.02-0.035×140 mm |
| Dialysis paper | 50-100g×100 mm | 50-100g×140 mm | 50-100g×140 mm |
| Mould cooling | Tap water or back water | Tap water or back water | Tap water or back water |
| Machine dimensions | 1400×460×950 mm | 2050×526×1320 mm | 2050×526×1320 mm |
| Net weight | 450 kg | 960 kg | 960 kg |
