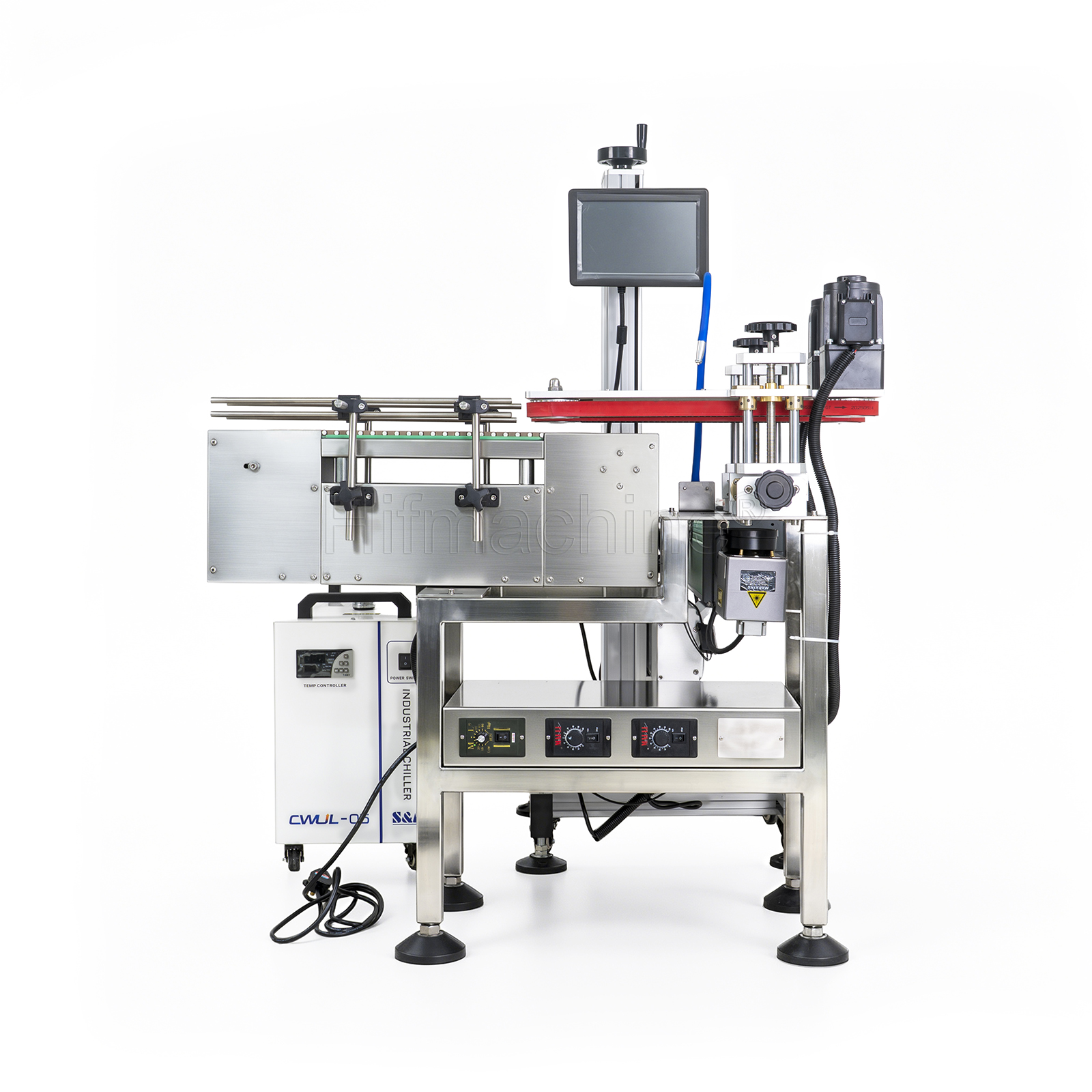

Laser Marking Machine LJ-UV5W
Laser Marking Machine LJ-UV5W
Equipped with a high-performance low-power laser beam, the LJ-UV5W delivers crisp, durable, and highly precise marks. It is specifically engineered for the high-end ultra-fine processing market, making it the ideal solution for marking on packaging surfaces such as cosmetics, pharmaceuticals, food products, and various polymer materials.
Remarks
- The short wavelength of the UV laser allows for a smaller focal spot, enabling exceptionally detailed marking.
- The “cold processing” mechanism minimizes the heat-affected zone, preventing damage to the substrate and ensuring high yield rates.
- The system is consumable-free, significantly reducing both maintenance expenses and operational overhead.
- Designed for stability and longevity, the machine supports continuous, long-term operation with minimal downtime.
- Provides high-contrast, permanent, and fade-resistant marking without the use of inks or chemicals.
- Equipped with a high-speed digital galvanometer, the system ensures rapid marking speeds, increasing throughput and effectively reducing labor costs compared to traditional inkjet coding solutions.
| Model | LJ-UV5W |
|---|---|
| Laser Wavelength | 355 nm |
| Cooling System | Water-cooled |
| Focal Length | 185 mm |
| Min. Line Width | 0.1 mm |
| Repeatability | 0.001 mm |
| Marking Area | 110 × 110 mm |
| Production Line Speed | 0 – 130 m/min |
| Power Supply | 220V / 50Hz |
| Dimensions | 650 × 160 × 181 mm |
| Net Weight | 37 kg |
