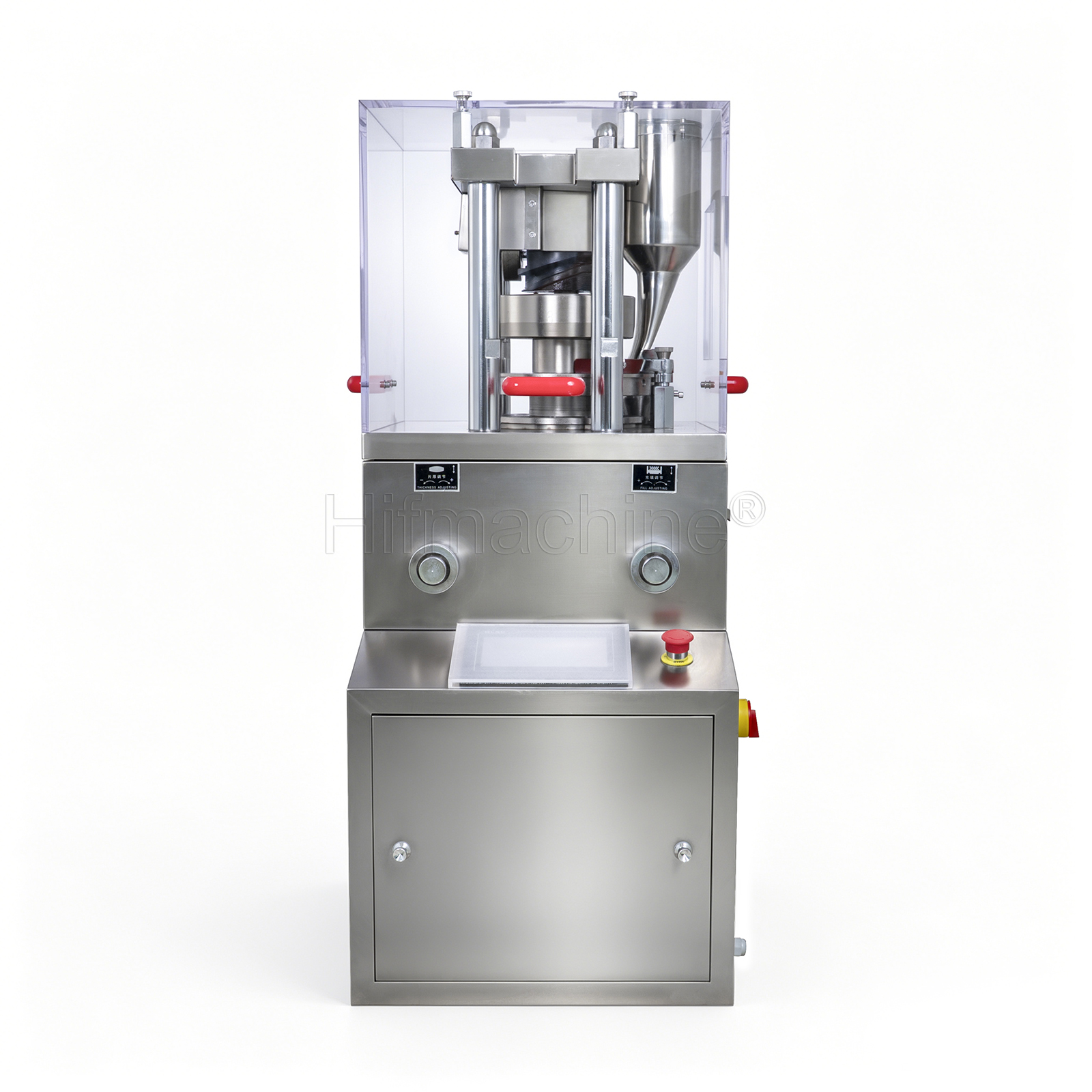

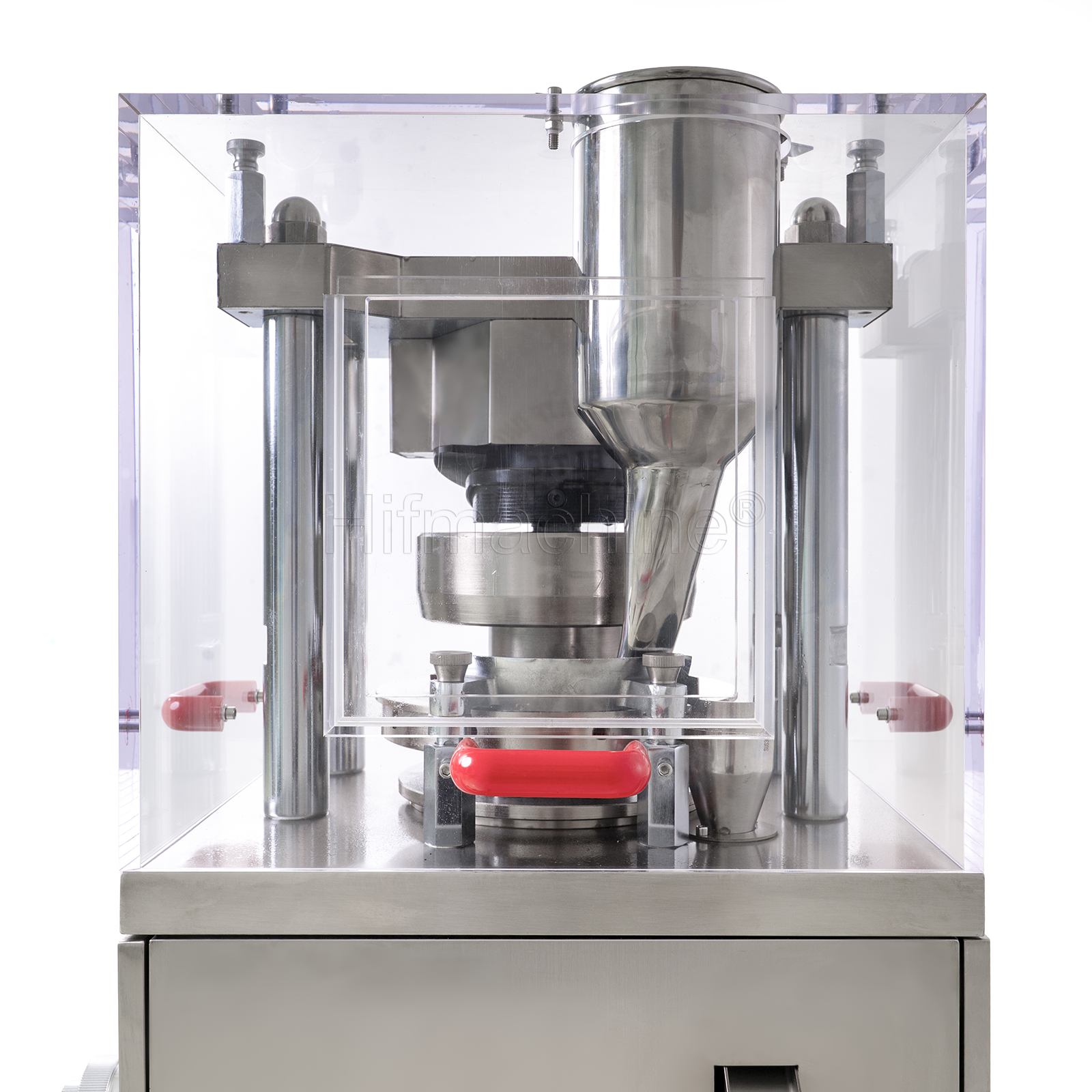

Electric Rotary Tablet Press ZPG-9
Electric Rotary Tablet Press ZPG-9
This equipment is widely utilized in the pharmaceutical, chemical, food, and electronics industries for process testing and formula validation, serving as an essential tool for evaluating the tabletability of granular materials. It is optimized for granulated feedstocks containing no more than 10% fine powder (above 100 mesh). This machine is not suitable for semi-solid, moisture-sensitive, low-melting-point materials, or pure powder formulations.
Remarks
- Utilizes micro-mass production principles to accurately simulate industrial-scale tableting, making it ideal for formula R&D, process validation, and pilot-scale trials.
- Capable of pressing circular, irregular, and engraved tablets (4–20 mm), accommodating standard granular materials to meet diverse testing requirements.

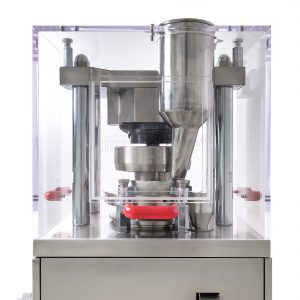

- Features a fully enclosed structure to prevent external contamination, meeting the rigorous hygiene standards of modern laboratory environments.
- Equipped with stainless steel isolation covers that protect the drive mechanism from dust erosion, thereby reducing wear and extending the operational lifespan of the equipment.

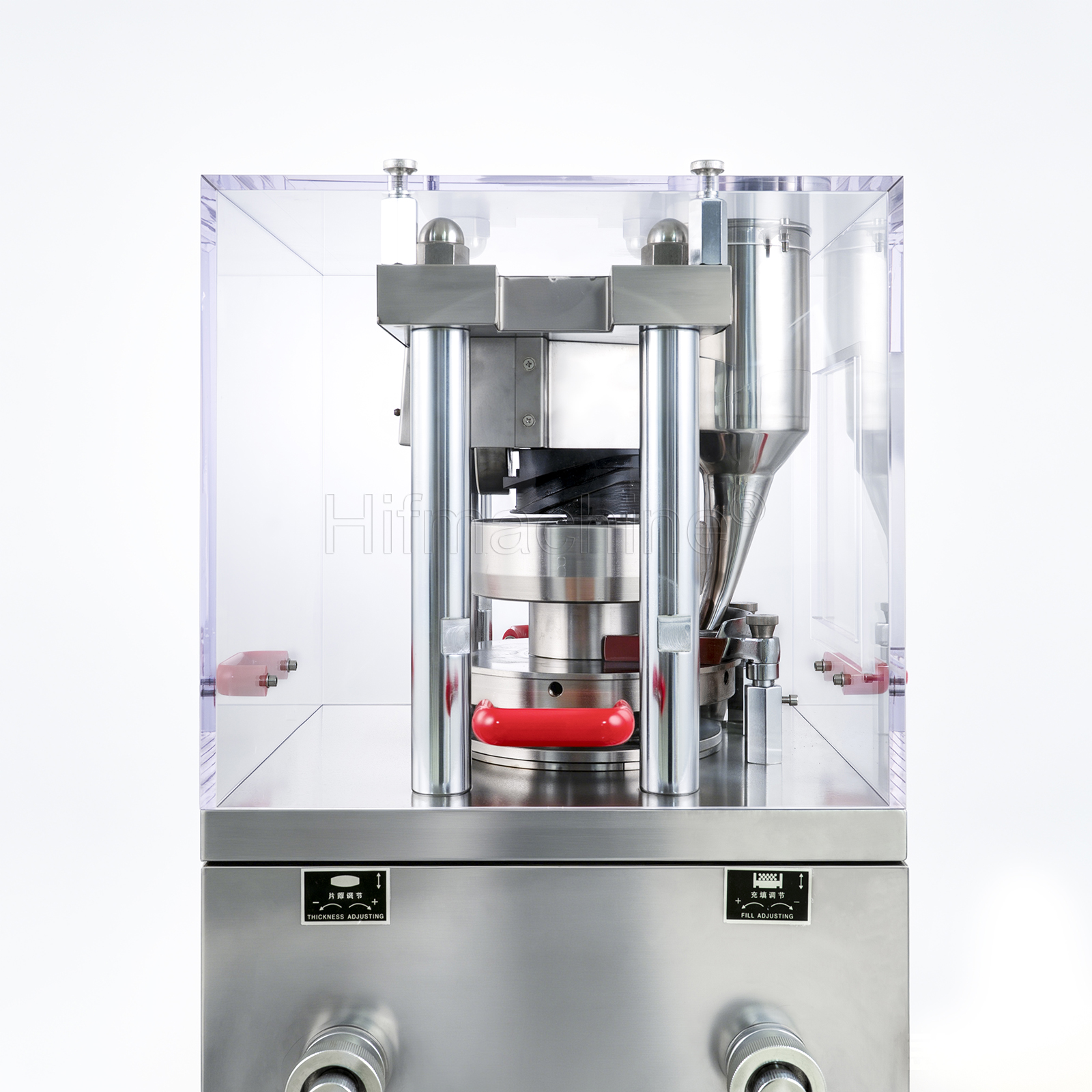

- Designed with multi-panel viewing windows that provide excellent visibility, facilitating routine cleaning, maintenance, and efficient mold replacement.
| Model | ZPG-9 |
| Number of Stations | 9 |
| Max. Pressure (kN) | 60 |
| Max. Filling Depth (mm) | 15 |
| Max. Tablet Thickness (mm) | 6 |
| Max. Output (pcs/h) | 13,500 |
| Max. Turret Speed (r/min) | 25 |
| Die Diameter (mm) | 38.1 |
| Die Height (mm) | 23.81 |
| Punch Diameter (mm) | 25.35 |
| Punch Length (mm) | 133.35 |
| Max. Tablet Diameter (mm) | 25 |
| Motor Power (kW) | 2.2 |
| Voltage (V) | 220V |
| Dimensions (L×W×H mm) | 480 × 635 × 1100 |
| Weight (kg) | 398 |
