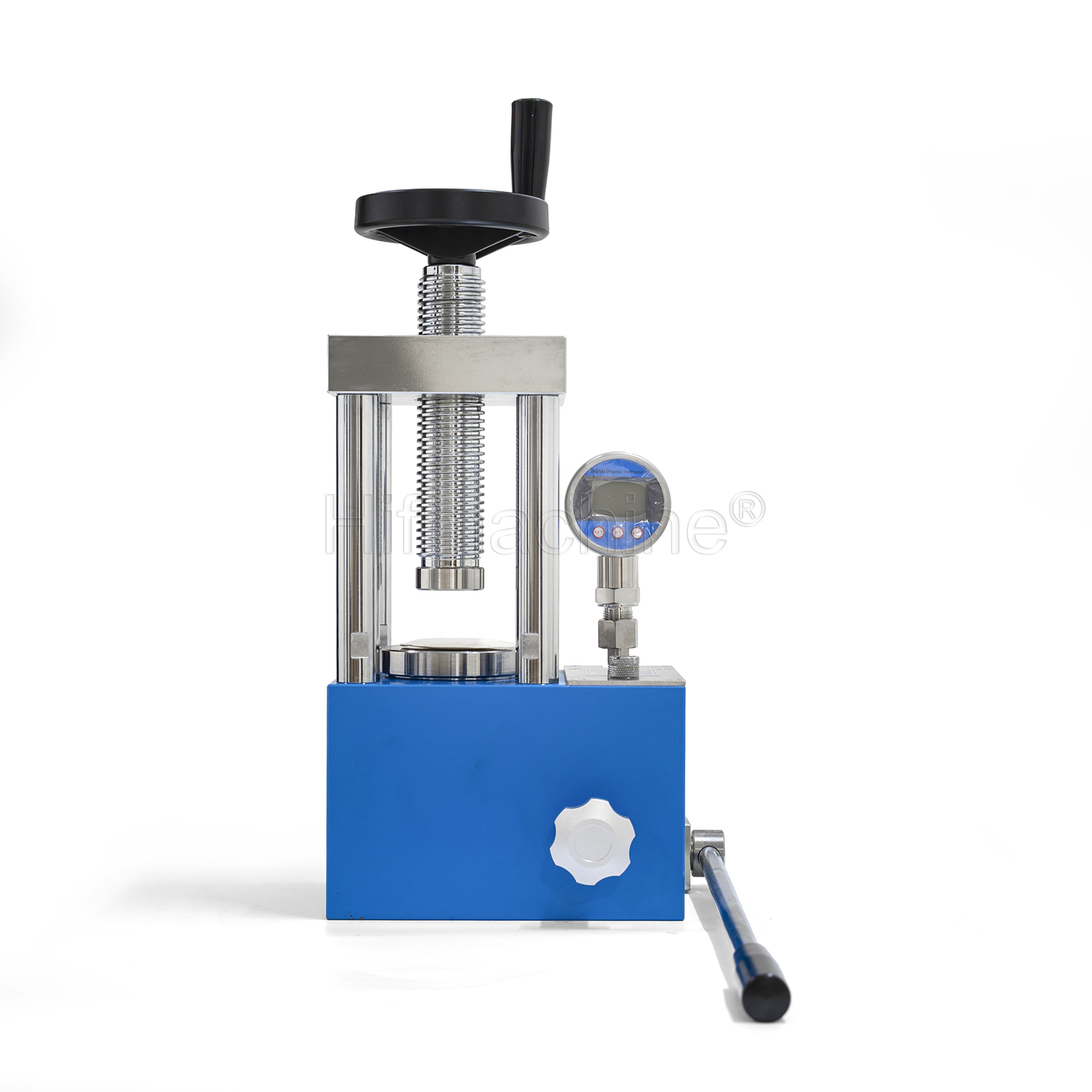

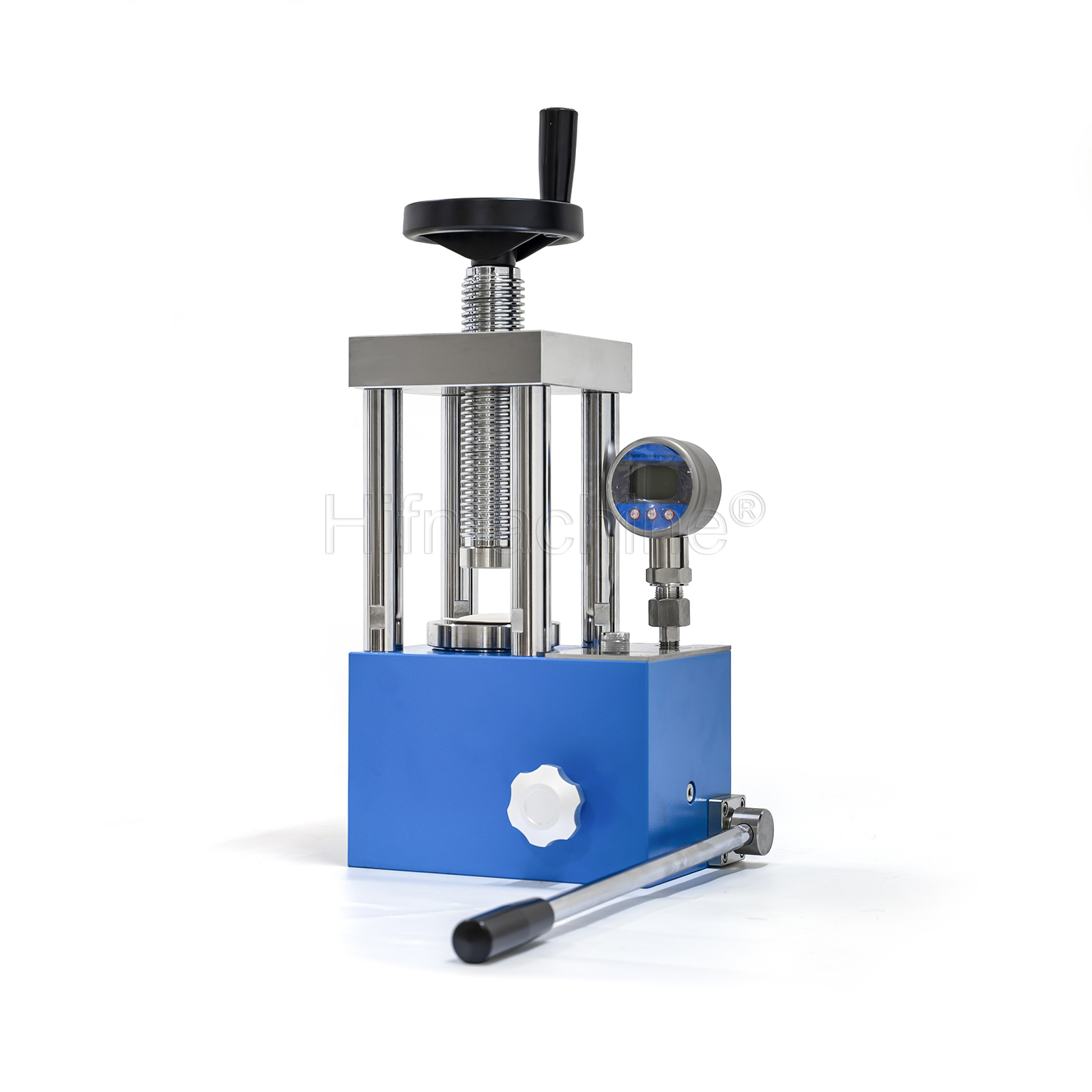

Digital Display Manual Tablet Press XU-15S
Digital Display Manual Tablet Press XU-15S
XU-15S digital display manual tablet press features compact size, high pressure output and precise pressure control. It is widely applied in scientific research, teaching, testing, pharmaceutical, catalysis and chemical industries. Compatible with various spectrometers for sample preparation.
This machine offers advantages such as excellent sealing, stable pressurization, ease of operation, and simple maintenance; its robust overall structure resists deformation, making it an ideal choice for portable hydraulic pressing in the laboratory.
This machine offers advantages such as excellent sealing, stable pressurization, ease of operation, and simple maintenance; its robust overall structure resists deformation, making it an ideal choice for portable hydraulic pressing in the laboratory.
Remarks
- Chrome-plated anti-rust cylinder with reliable sealing performance and zero oil leakage.
- Integrated oil tank design with non-sealed connection between mainboard and cylinder for higher stability.
- 30mm return stroke ensures stable rebound and deformation-resistant structure.
- Small size and light weight, portable and easy to store and carry.
- Digital pressure gauge supports precise pressure adjustment with accuracy up to 0.01MPa.

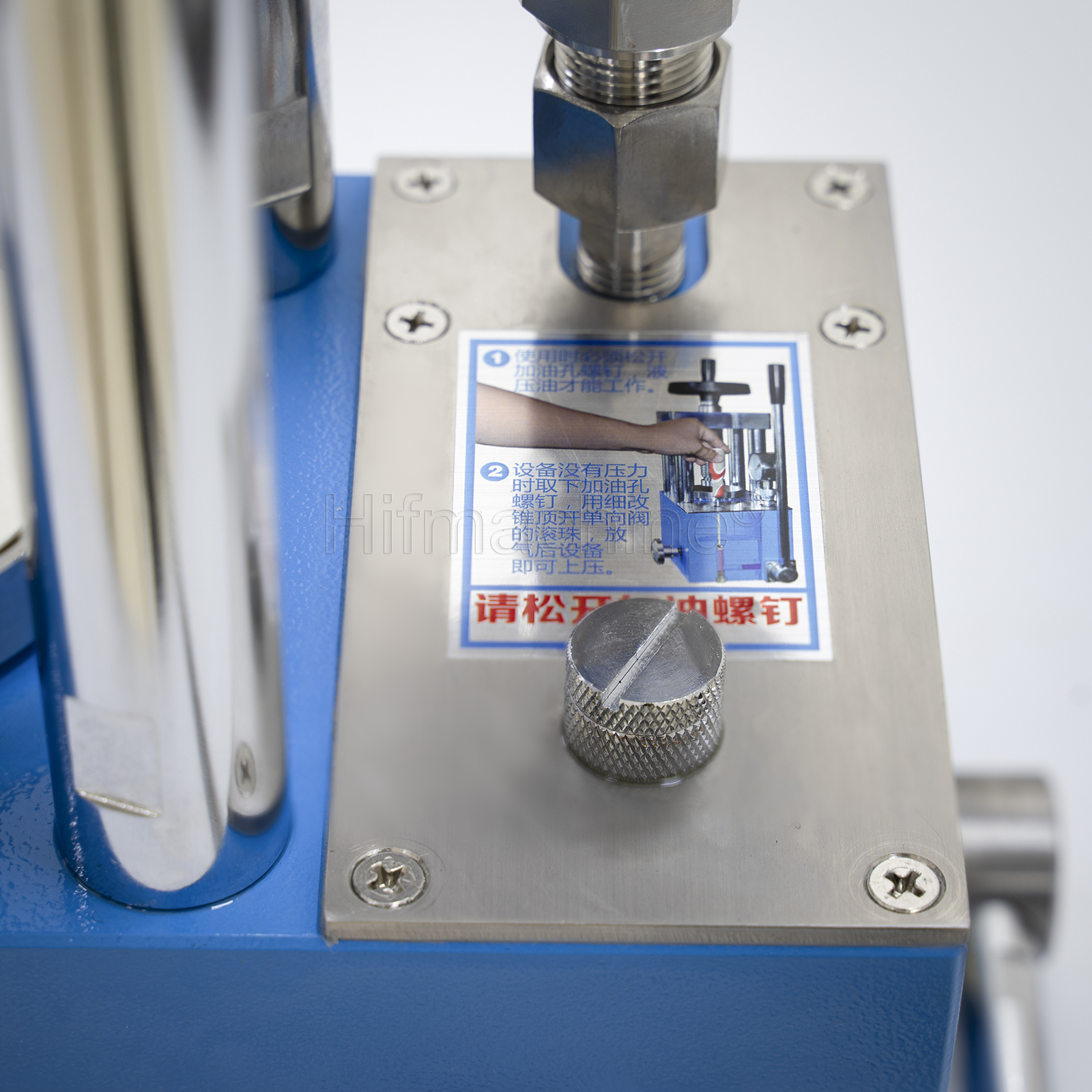

- Built-in oil filter and external oil tank enable convenient oil replacement and cleaning.
- Specially sealed plunger with multi-layer protection to effectively prevent hydraulic leakage.
- Optimized pressing angle saves effort and avoids forward tilting for stable operation.
| Model | XU-15S |
| Pressure Range | 0-15T |
| Piston Diameter | Chrome-Plated Hydraulic Cylinder, Ø80 mm (d) |
| Structure | Integrated structure without sealed joints, minimizing the risk of oil leakage |
| Pressure Gauge | Digital Display, 0.00–15.00 T |
| Maximum Piston Stroke | 30 mm (T) |
| Pressure Stability | ≤1 MPa / 10 min |
| Working Table Diameter | Φ90 mm (D) |
| Guide Columns | 2 pcs |
| Distance Between Guide Columns | 80 x 140 mm (M X N) |
| Overall Dimensions / Weight | 250 x 175 x 405 mm (L* W * H) / 40 kg |
| Packing Dimensions / Weight | 405 x 330 x 550 mm (L * W *H) / 49 kg |
