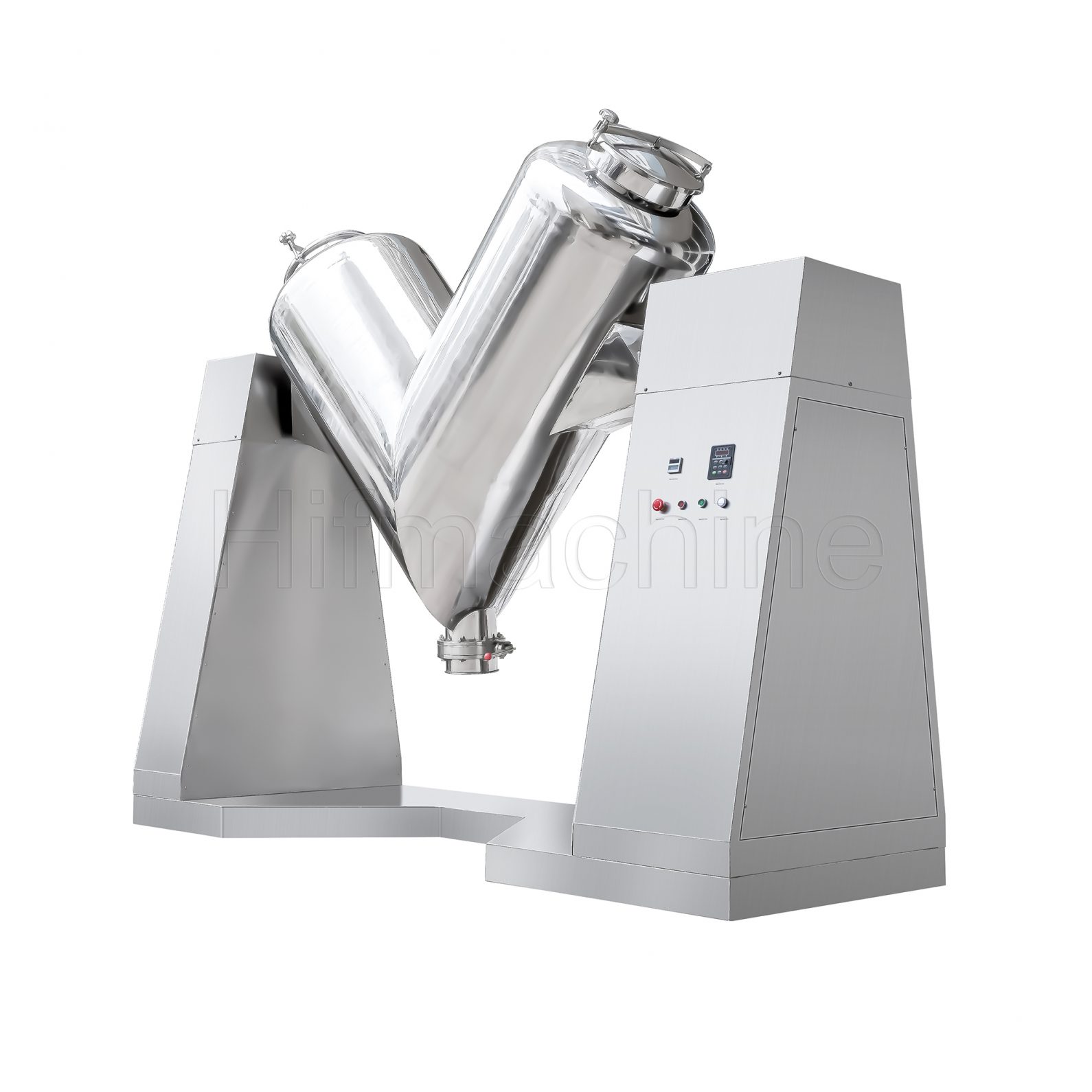

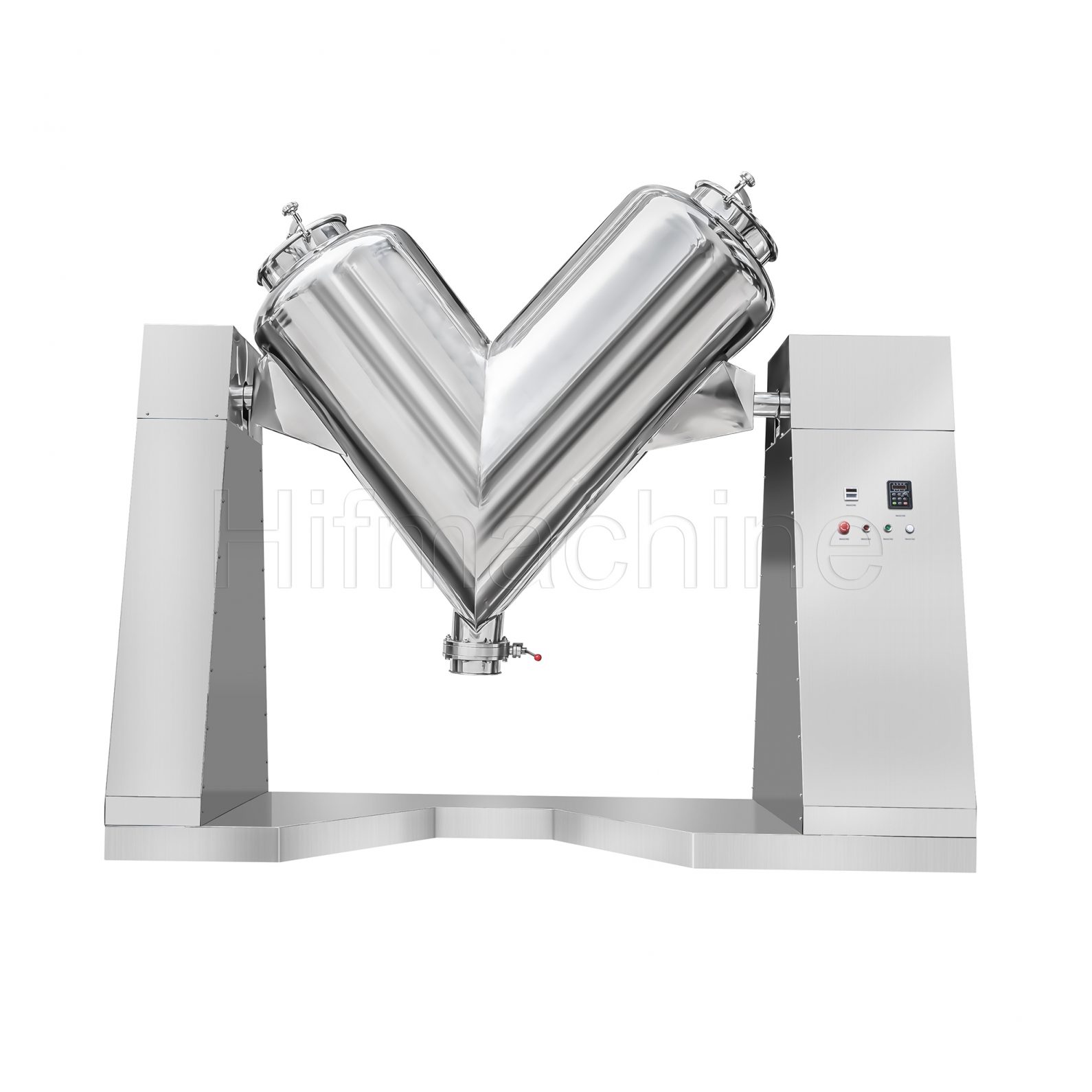

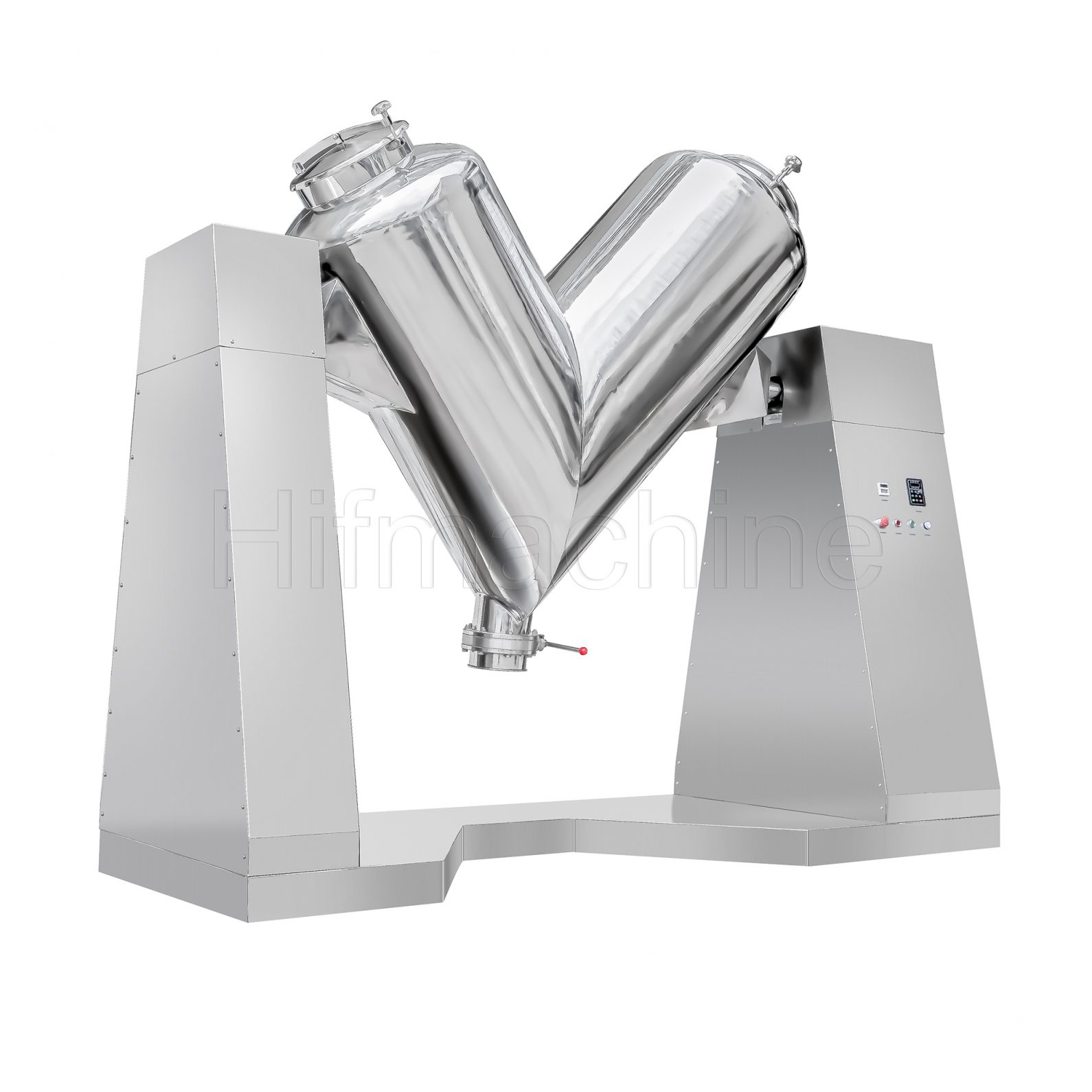

V Blender Dry Powder Mixer Blending Machine V500 – V4000
V Blender Dry Powder Mixer Blending Machine V500 – V4000

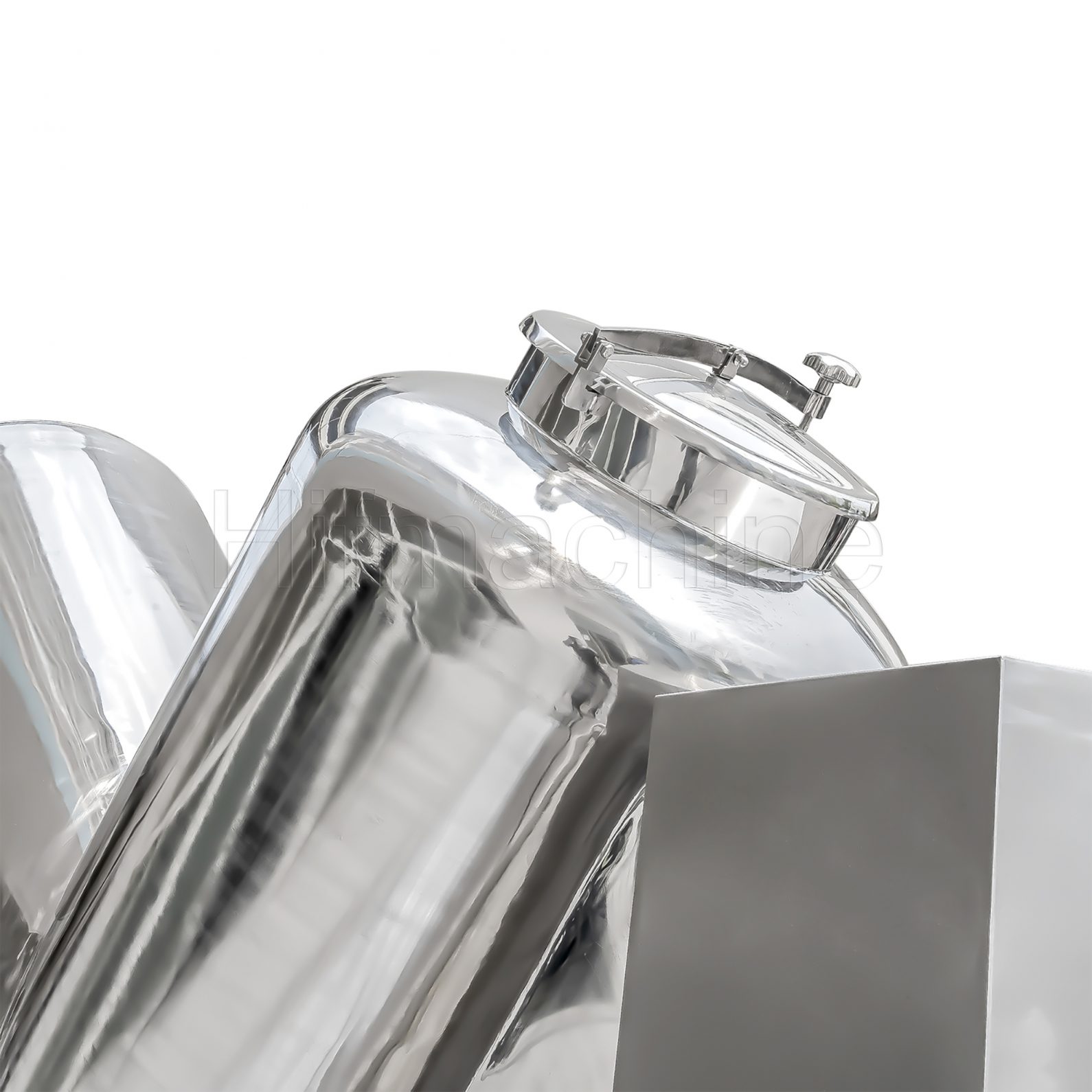

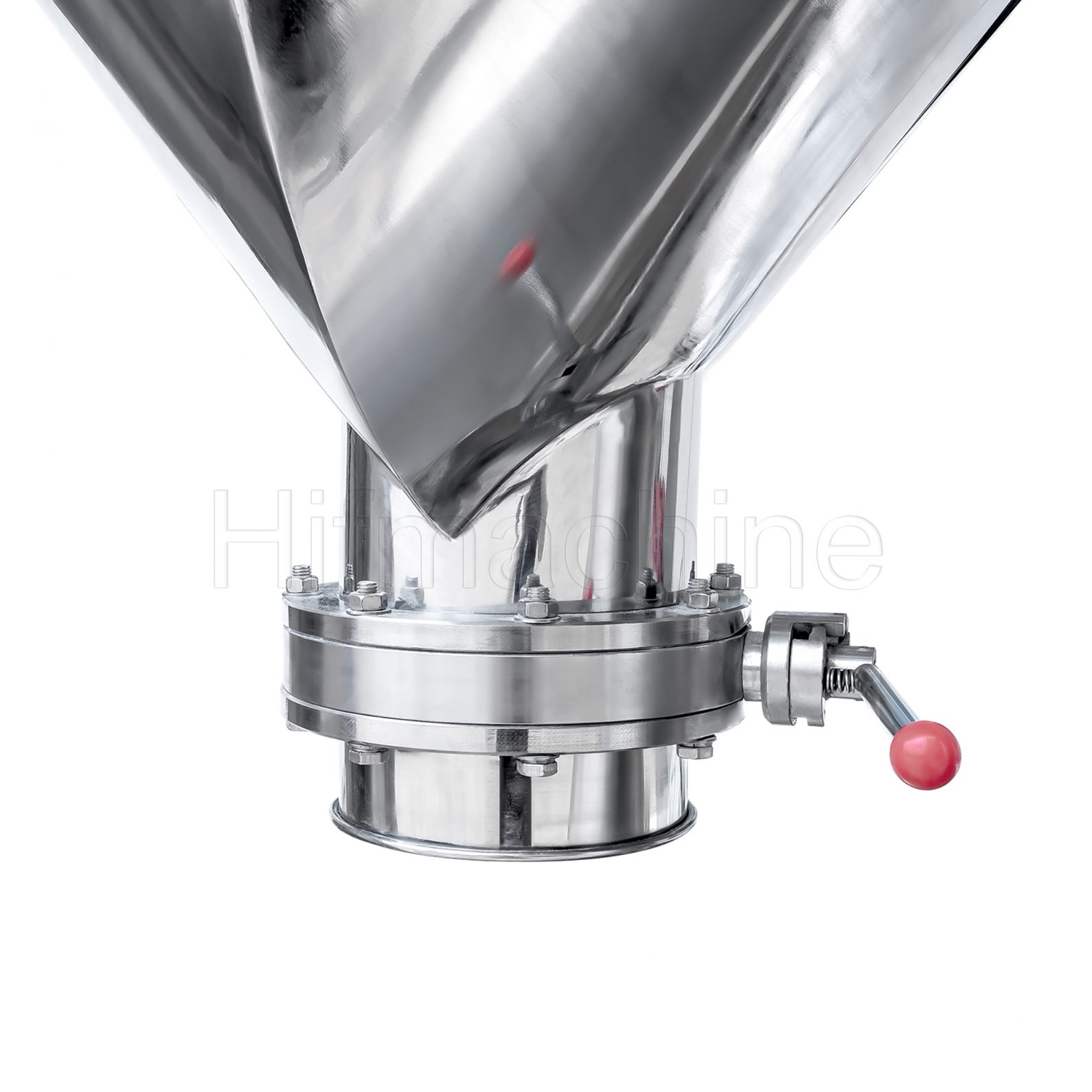

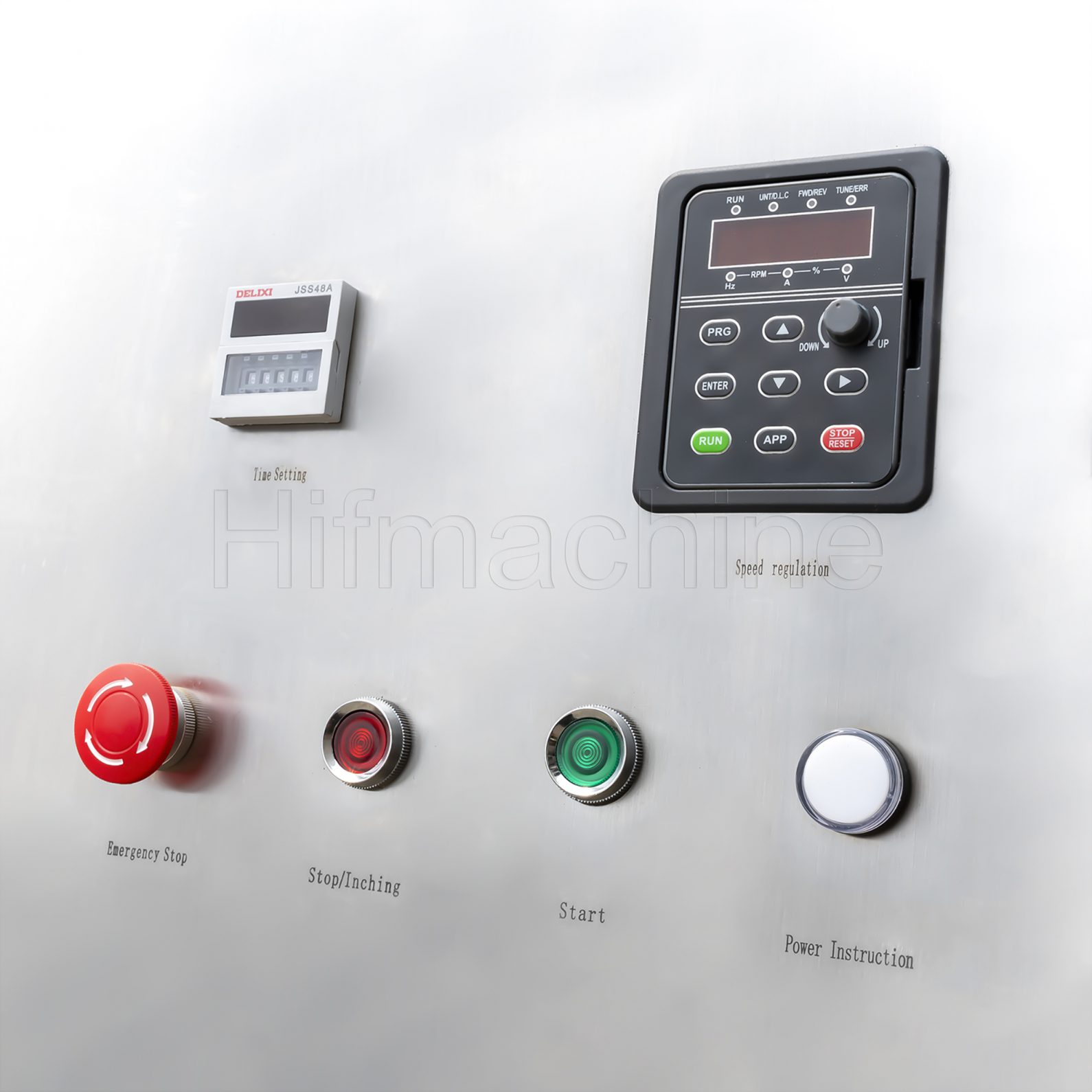

This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won’t pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.
Working Principles： The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
| Model | V-500 | V-1000 | V-1500 | V-2000 | V-3000 |
|---|---|---|---|---|---|
| Volume | 500L | 1000L | 1500L | 2000L | 3000L |
| Max. Filling Capacity | 200L | 400L | 600L | 800L | 1200L |
| Best Filling Capacity | 140L | 280L | 420L | 560L | 840L |
| Power | 2.2kW | 4kW | 4kW | 5kW | 7.5kW |
| Rotational Speed | 13r/min | 10r/min | 10r/min | 10r/min | 8r/min |
| Dimensions(mm) | 2420x800x1950 | 3180x1100x2242 | 3376x1100x2587 | 3810x1400x2830 | 4220x1500x3200 |
