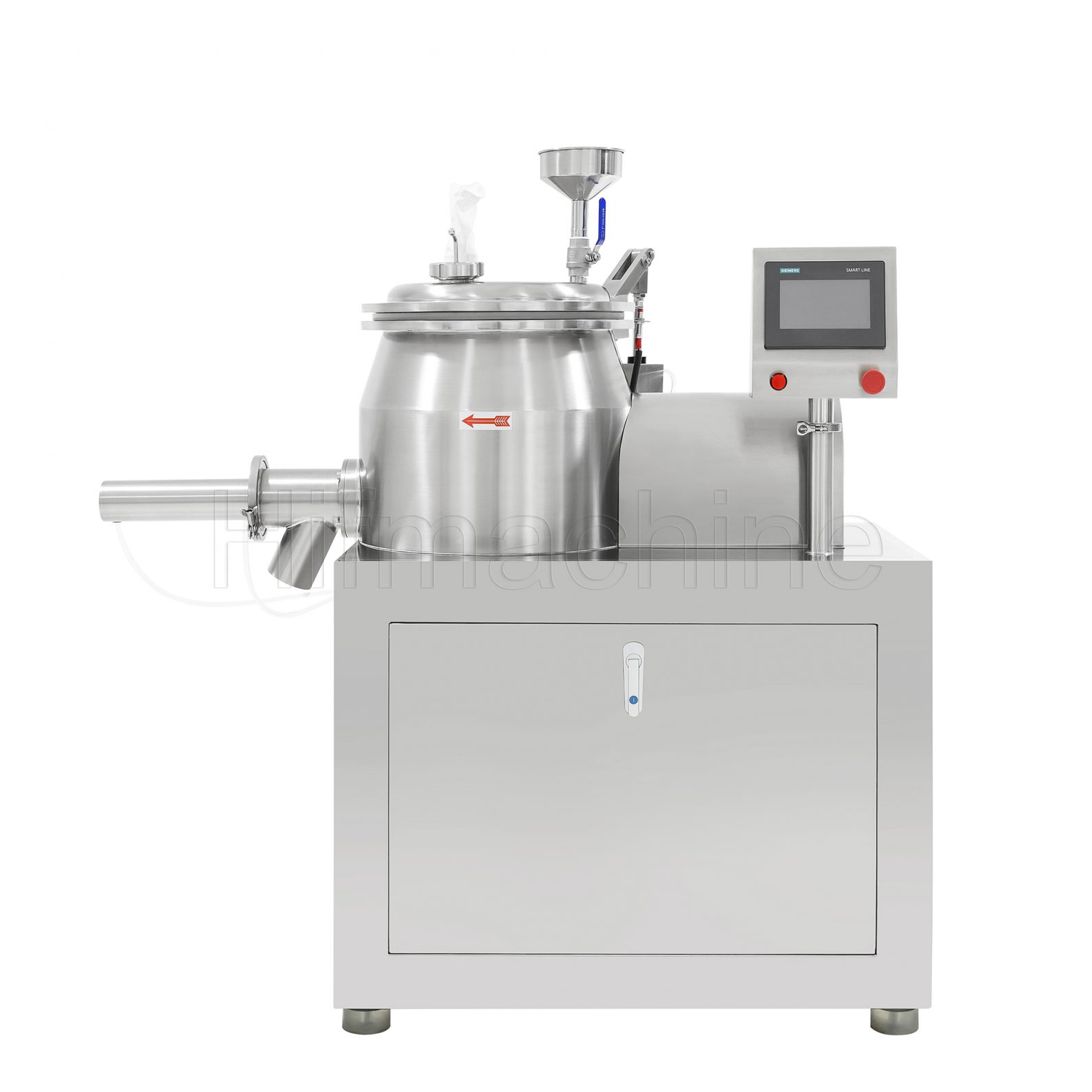

High Efficiency Wet Mixing Granulator CHL-50
High Efficiency Wet Mixing Granulator CHL-50
Our company’s high-speed wet granulator is an improved product based on similar imported products. It features easy operation and simplified processes. The obtained granules fall within the 16 to 80 mesh range, and the entire granulation process can be completed in just a few minutes. While foreign countries mainly use resin-based organic solvents as adhesives, the pharmaceutical industry in our country mostly uses starch-based adhesives. We have conducted experiments on ten types of drugs, including four categories: sulfonamides, vitamins, antibiotics, and compound preparations. We used various proportions (10%, 13%, 15%, 18%) of starch paste and different concentrations of organic solvents as adhesives for the tests, and the granules produced showed excellent performance and met the quality requirements.
Feature
- Granulation of pharmaceuticals.
- Granulation in the food industry, such as seasoning, dairy products, sweeteners, spices, sour flavors, food additives, food coloring, and fruits, among others.
- Granulation in the chemical industry, including synthetic resins, cleaning agents, deodorants, dyes, desiccants, dehumidifiers, yeast, oils, decolorants, acidifiers, insecticides, pigments, and disinfectants.
- Granulation of feed additives, fish feed, livestock feed, etc.
- Granulation of pesticides, including veterinary drugs, herbicides, hydrating agents, and intermediate agents.
- Other applications, such as fertilizers, clay, gypsum, and urea.
| Model | CHL-50 | CHL-100 | CHL-200 | CHL-250 | CHL-400 | CHL-600 |
|---|---|---|---|---|---|---|
| Effective Volume (L) | 50 | 100 | 200 | 250 | 400 | 300 |
| Wet Granule Yield per Batch (kg) | 15–20 | 20–40 | 60–80 | 80–100 | 150–200 | 200–280 |
| Granulation Time per Batch (min) | 5–10 | 8–10 | ||||
| Mixing Speed (r/min) | 200/400 | 180/270 | 105/155 | 50–300 | ||
| Mixing Motor Power (kW) | 4/5.5 | 6.5/8 | 9/11 | 18.5/22 | 45 | |
| Chopper Speed (r/min) | 1500/3000 | 300–3000 | ||||
| Chopper Power (kW) | 1.3/1.8 | 3.3/4 | 4.5/5.5 | 6.5/8 | 11 | |
| Air Consumption (m³/min) | 0.4 | 0.6 | 1.5 | 1.7 | ||
| Overall Dimensions (mm) | 1250×800×1350 | 1600×900×1200 | 2050×850×1500 | 2420×1200×1700 | 3200×1450×2830 | |
