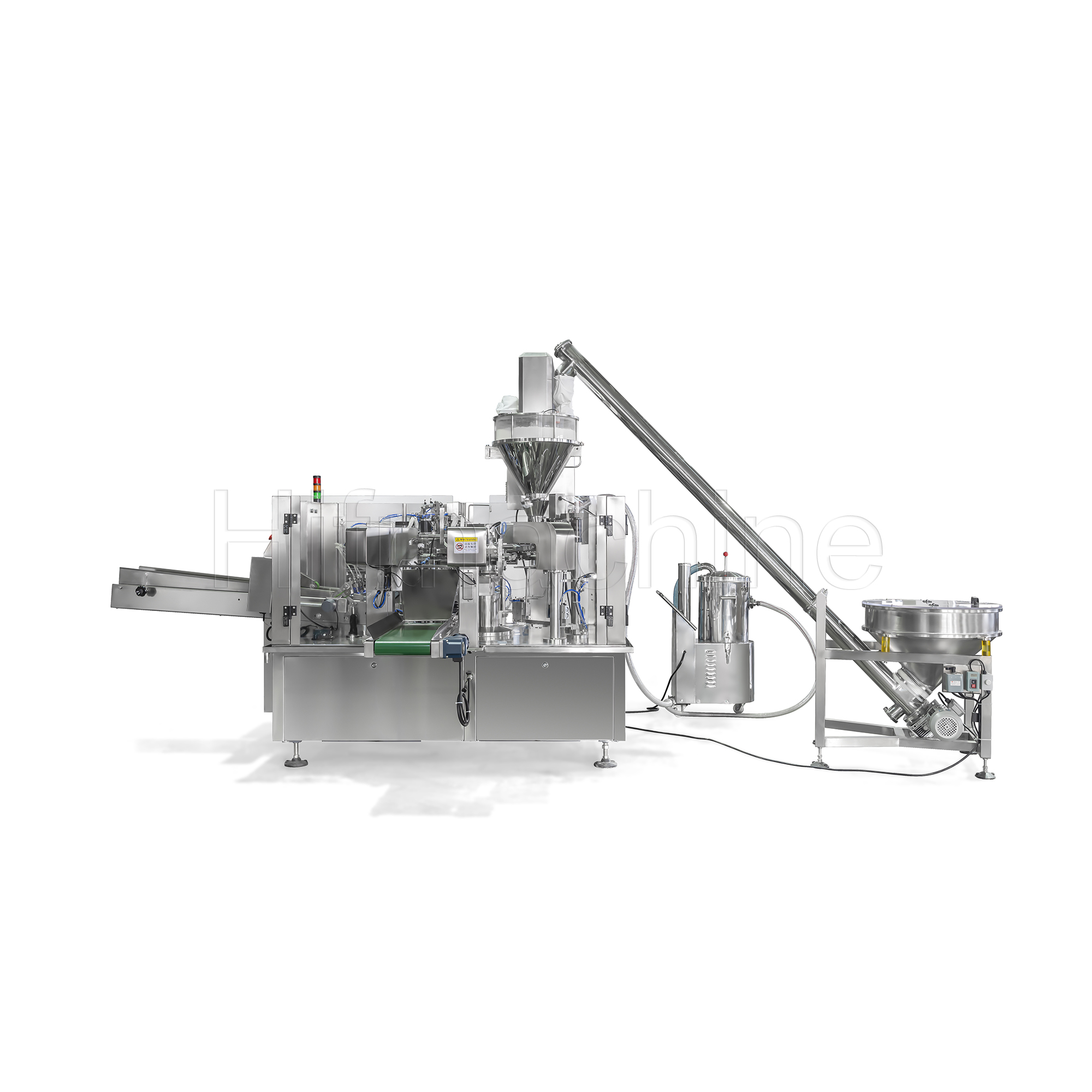

Rotary Pouch Sealing Machine
Rotary Pouch Sealing Machine
Fully automatic rotary pre-made bag packaging machine, designed for efficient and accurate packaging of solids, powders, sauces, liquids and other products. It integrates advanced control systems and a variety of optional functions to provide users with flexible and reliable packaging solutions.
Feeding Method

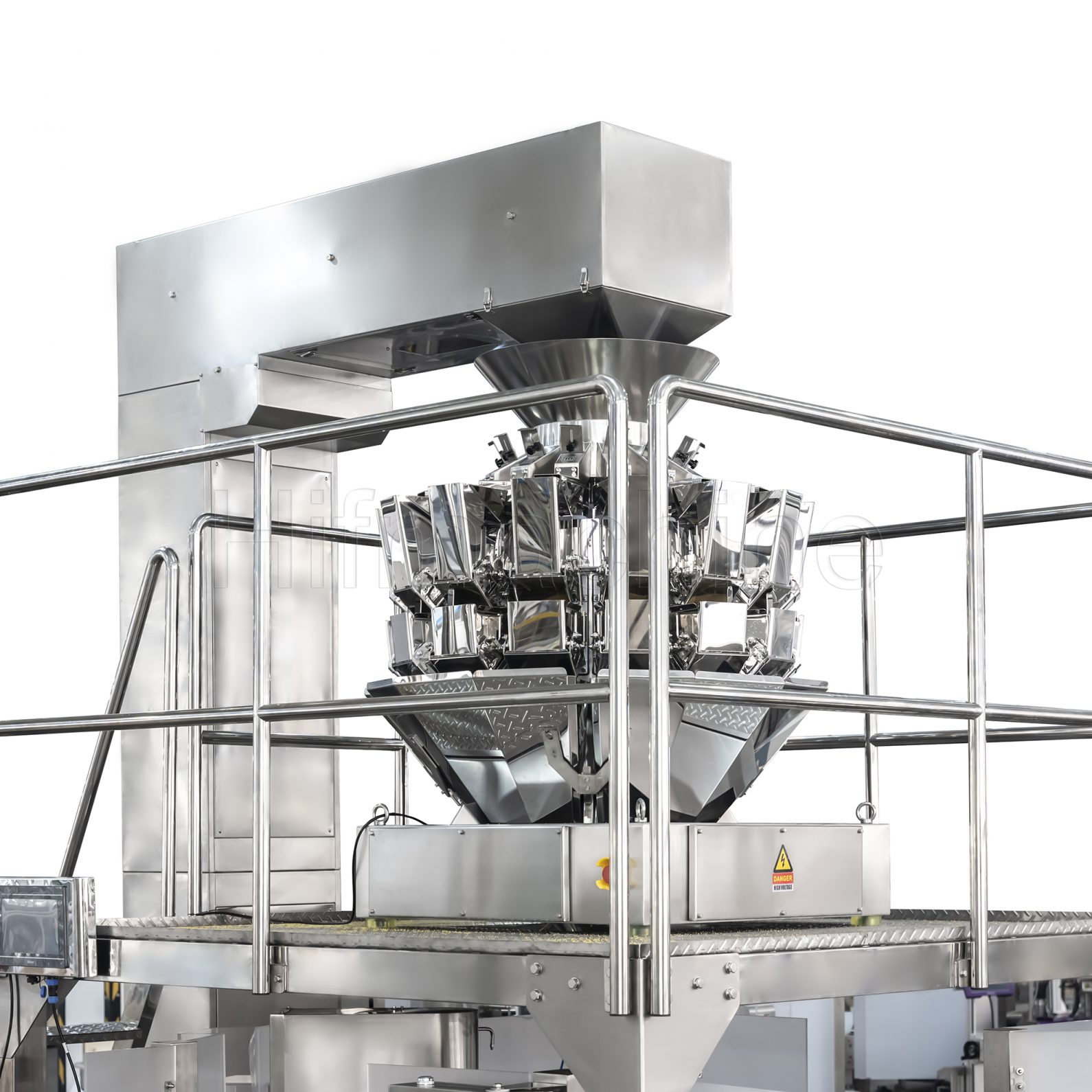

- Weighing Scale

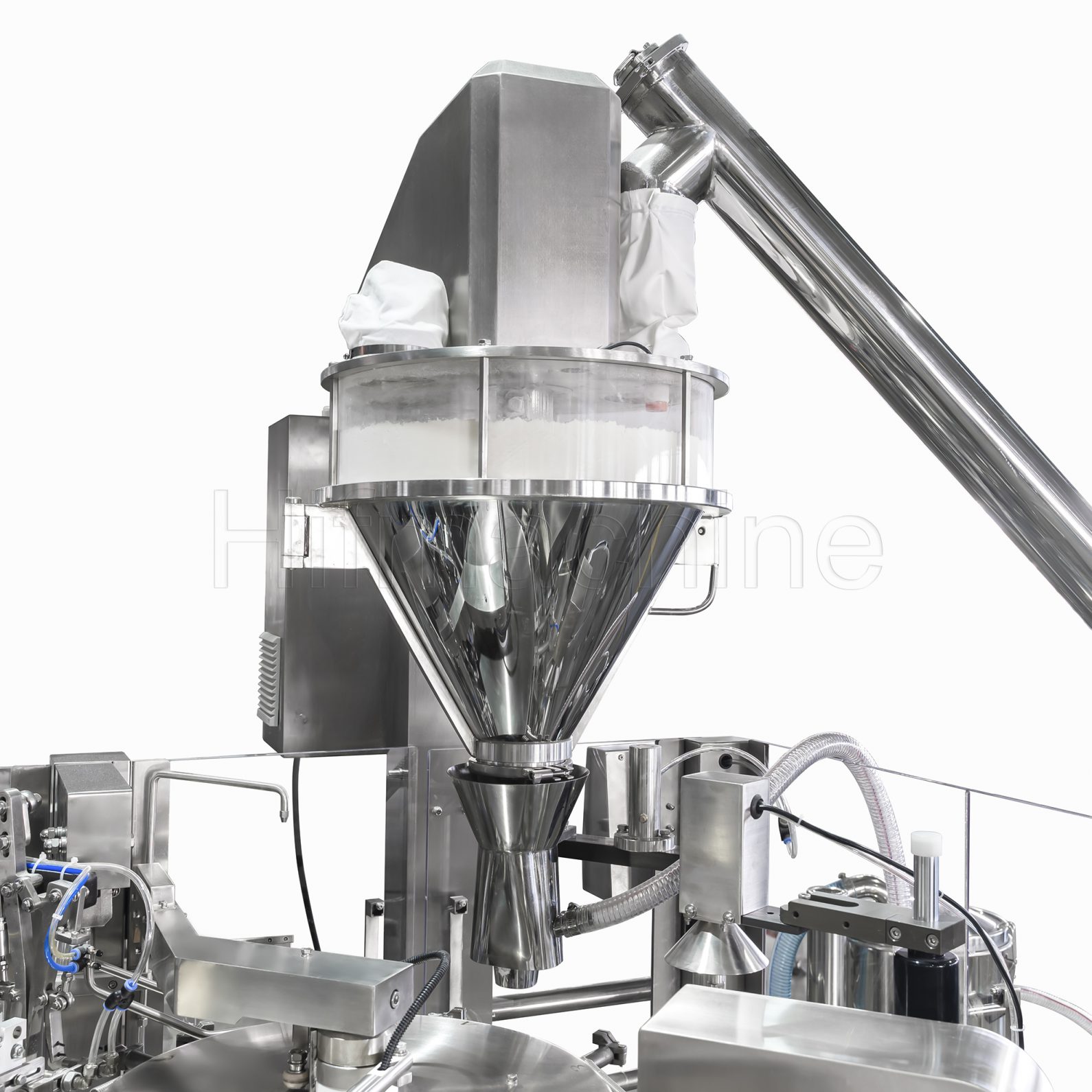

- Powder Auger Filling Machine
- Multi-lane Counting Machine
Feature

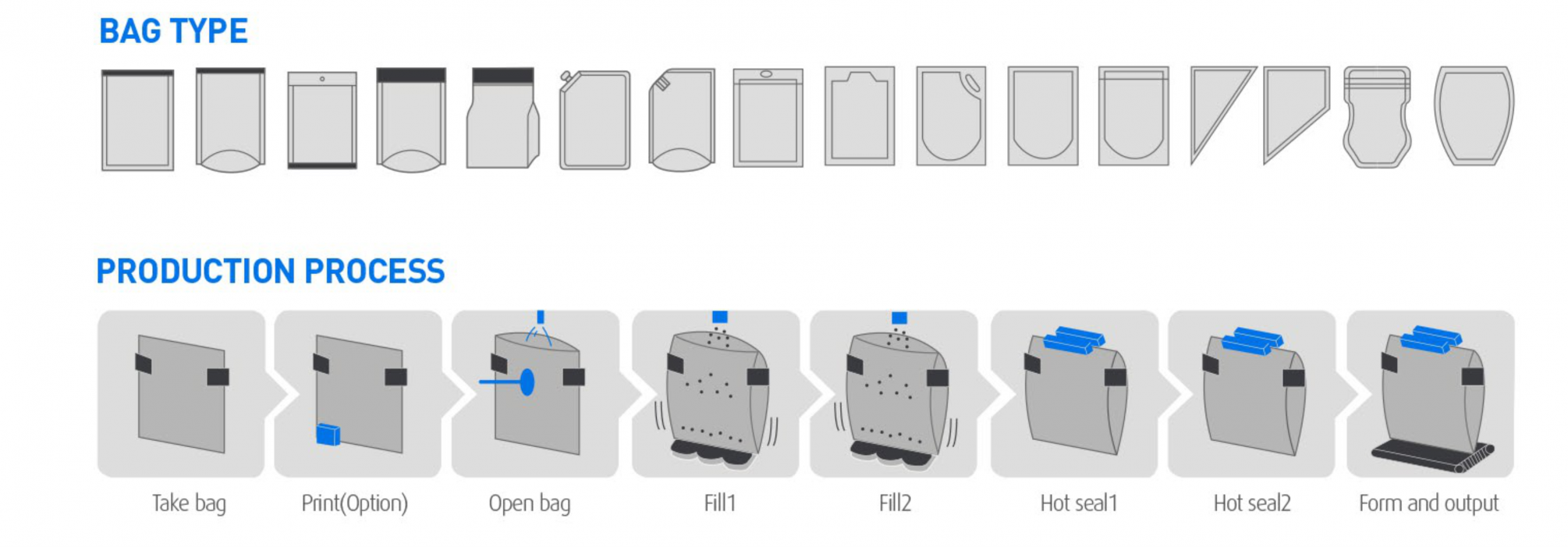

- Automatic packaging process: From bag taking, bag opening, filling, sealing to discharging, the entire packaging process is completed automatically without manual intervention.
- High-precision metering: It can be matched with a variety of metering equipment to achieve precise weight or volume control and ensure packaging accuracy.
- Diversified packaging forms: It can package various types of prefabricated bags such as flat bags, back-sealed bags, stand-up bags, zipper bags, etc. to meet the packaging needs of different products.
- Efficient production: The packaging speed can reach 60 bags/minute, which greatly improves production efficiency and reduces labor costs.
- Humanized design: The touch screen operation interface is intuitive and easy to use, and parameters can be quickly set and equipment status can be monitored.
- Safe and reliable: Equipped with a variety of safety protection devices, such as emergency stop buttons, safety door switches, etc., to ensure the safety of operators.
- Easy to maintain: The structural design is simple, easy to clean and maintain, and reduces maintenance costs.
| Specifications | SF8-200C | SF8-240E |
|---|---|---|
| Bag Type | Flat pouch, stand-up pouch, handle bag, etc. | Flat pouch, stand-up pouch, zipper bag |
| Bag Dimensions | Width: 80-200mm; Length: 100-300mm | Width: 80-240mm; Length: 150-370mm |
| Packing Speed | 25-60 bags/min (depending on product and material) | ≤ 60 bags/min (depending on packaging conditions) |
| Power Consumption | 5 kW | 3.02 kW (excluding vacuum pump) |
| Machine Weight | 1500 kg | 1500 kg |
| Machine Dimensions (L*W*H) | 1710 × 1505 × 1640 mm | 1860 × 1470 × 1550 mm |
