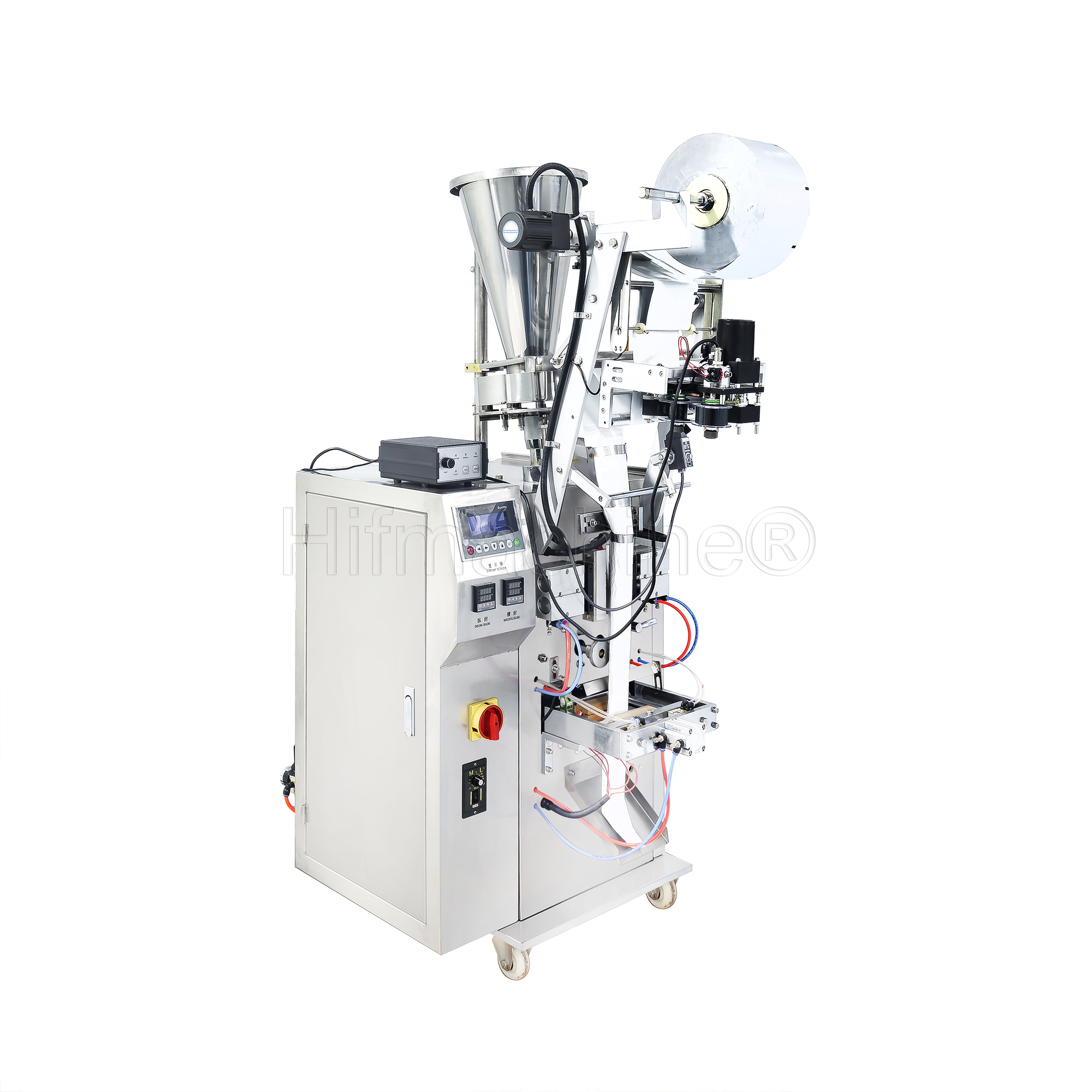

Granule Packaging Machine DXD-80K
Granule Packaging Machine DXD-80K
Specifically designed for the pharmaceutical, food, and chemical sectors, the DXD-80K provides an optimized packaging solution for free-flowing, non-sticky granular products, such as instant beverages, sugar, seasonings, oats, and dehydrated soup mixes. Known for its high level of automation, this machine is user-friendly and allows for effortless adjustments. With support for multiple bag-forming styles, the DXD-80K can be fully customized to align with your specific production requirements.
Remarks
- Allows for stepless adjustment of bag length and drawing speed within a defined range.

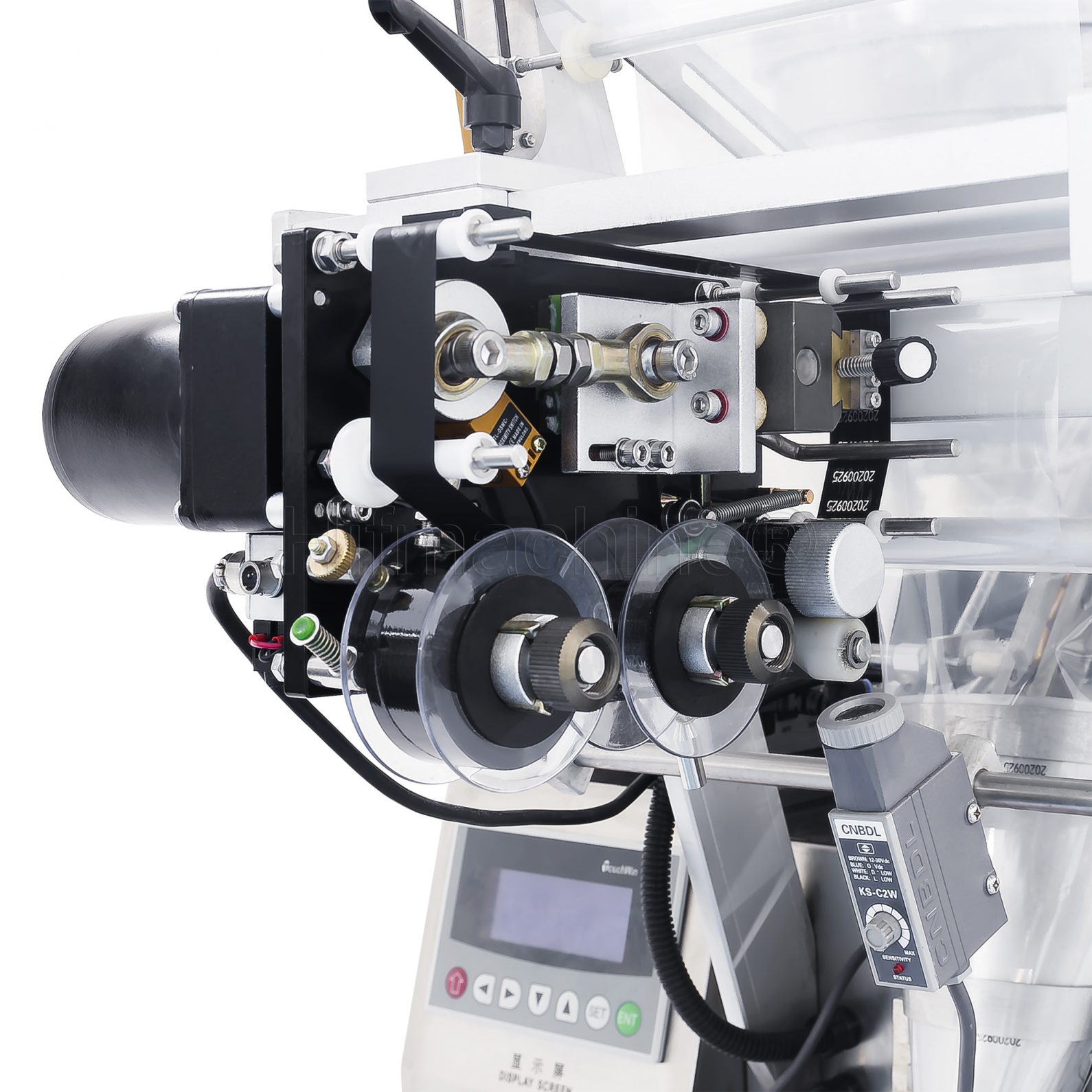

- Equipped with a high-precision registration system for accurate printing alignment.
- Ensures stable, smooth, and consistent film feeding throughout the packaging process.
- Supports various configurations, including 3-side seal, 4-side seal, and pillow (back seal) styles.
- Can be integrated with optional devices such as batch coders and tear-notch makers to provide a tailored solution for your production line.
| Model | DXD-80K |
|---|---|
| Packaging Speed | 30 – 60 bags/min |
| Filling Range | 1 – 50 g |
| Bag Length | 30 – 130 mm |
| Bag Width | 17 – 90 mm |
| Bag Style | 3-side seal, 4-side seal, Back seal |
| Power Supply | Single-phase 220V AC, 50 Hz |
| Total Power | 1.5 kW |
| Air Source | Pressure: 0.5 – 0.7 MPa |
| Air Consumption | ≥ 0.03 m³/min |
| Dimensions (L×W×H) | 1050 × 700 × 1650 mm |
| Machine Weight | Approx. 185 kg |
