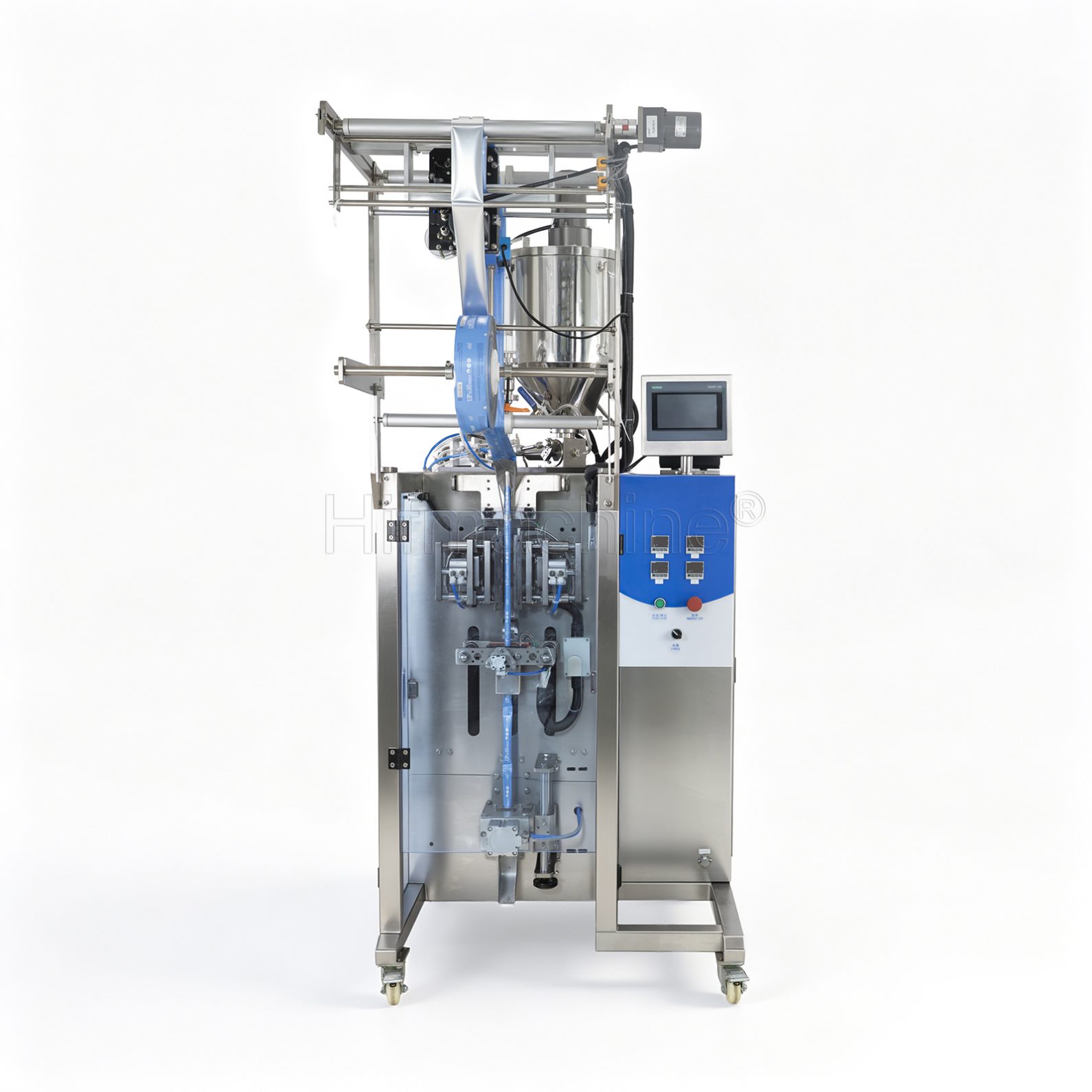

Automatic Single-Row Packaging Machine
Automatic Single-Row Packaging Machine

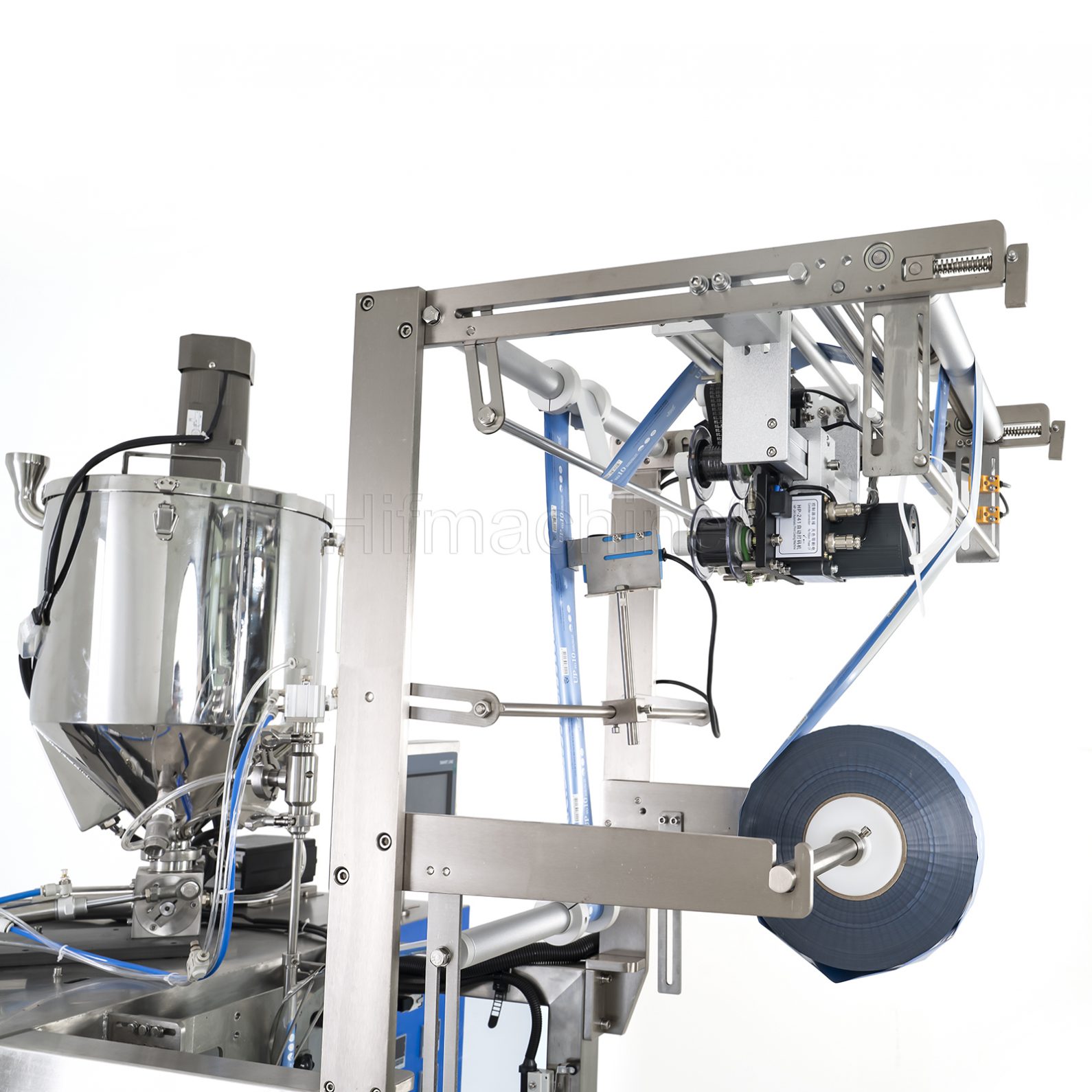

This machine is equipped with a high-precision photoelectric eye system that detects color marks on packaging materials, ensuring the consistency, accuracy, and aesthetic appeal of every bag.
Designed for operational efficiency, the unit features a user-friendly interface with a touch-screen control panel, allowing operators to easily configure parameters and monitor production status in real-time. For optimal performance, the machine must be connected to a stable pressure source and installed on a solid, vibration-free foundation. We also provide comprehensive maintenance guides and troubleshooting support to ensure the long-term reliability and peak operating condition of your equipment.

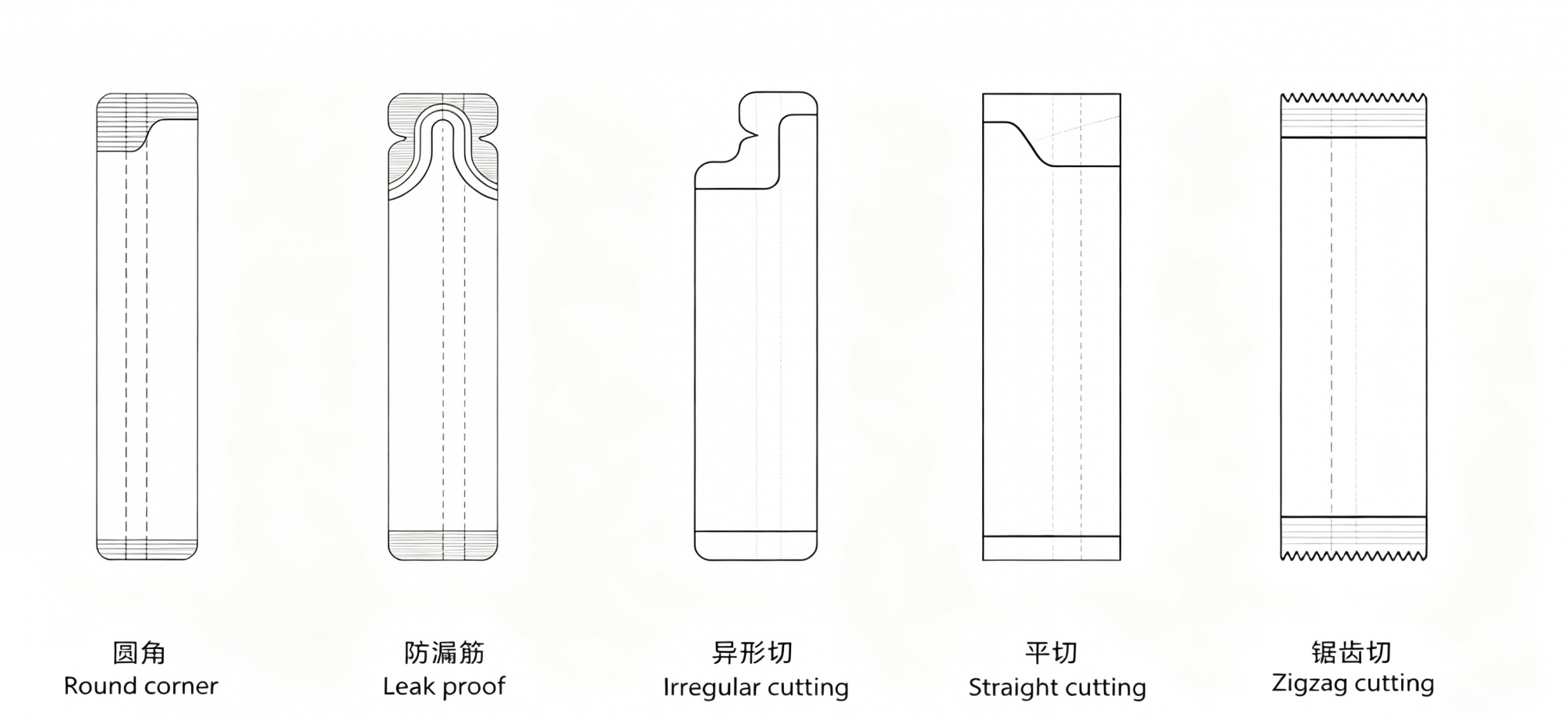

Bag Type
Feeding Method
Customization Services
We offer professional customization services to ensure that our equipment perfectly aligns with your specific production requirements.
Feature
- Fully automated: no human intervention is required for the entire process from bag making to finished product output.
- High precision: the photoelectric eye accurately identifies the color mark on the packaging film to ensure the accurate position of each bag.
- Versatility: suitable for a variety of packaging materials, such as paper/PE, PET/AL foil/PE, PET/PE, NYLON/PE, etc.
- Safe and reliable: built-in multiple safety measures, such as emergency stop button, grounding protection wire and design to avoid contact with high-temperature components.
- Easy to use: intuitive operation panel and HMI human-machine interface, easy for users to get started quickly.
- Regular maintenance reminder: remind users to add lubricating oil regularly and check fasteners to ensure that the machine is in the best working condition.
- Additional functions: Optional batch number printing and tearing functions are available to improve the convenience of use.
- High-quality components: Adopt high-quality components to ensure stable equipment performance, low noise, low failure rate and long service life.
- Perfect after-sales service: provide a one-year warranty and lifetime technical service support, and respond to customer feedback in a timely manner.
| Specifications | CBZ-50YS | CBZ-50F |
|---|---|---|
| Packaging Speed | 35–50 bags/min | 40-60 bags/min |
| Bag Dimensions (L×W) | (L) 30–150 mm, (W) 40–100 mm | (L) 30–160 mm, (W) 25–110 mm |
| Power Supply | 220V / 50-60Hz | 220V / 50-60Hz |
| Power Consumption | 800 W | 1.1 kW |
| Packaging Materials | Paper/PE, PET/AL/PE, PET/PE, Nylon/PE, etc. | PE, PP, PET, Aluminum foil composite films, etc. |
| Dimensions (L×W×H) | 850 × 1250 × 1650 mm | 625 × 800 × 1650 mm |
| Net Weight | 260 kg | 260 kg |
