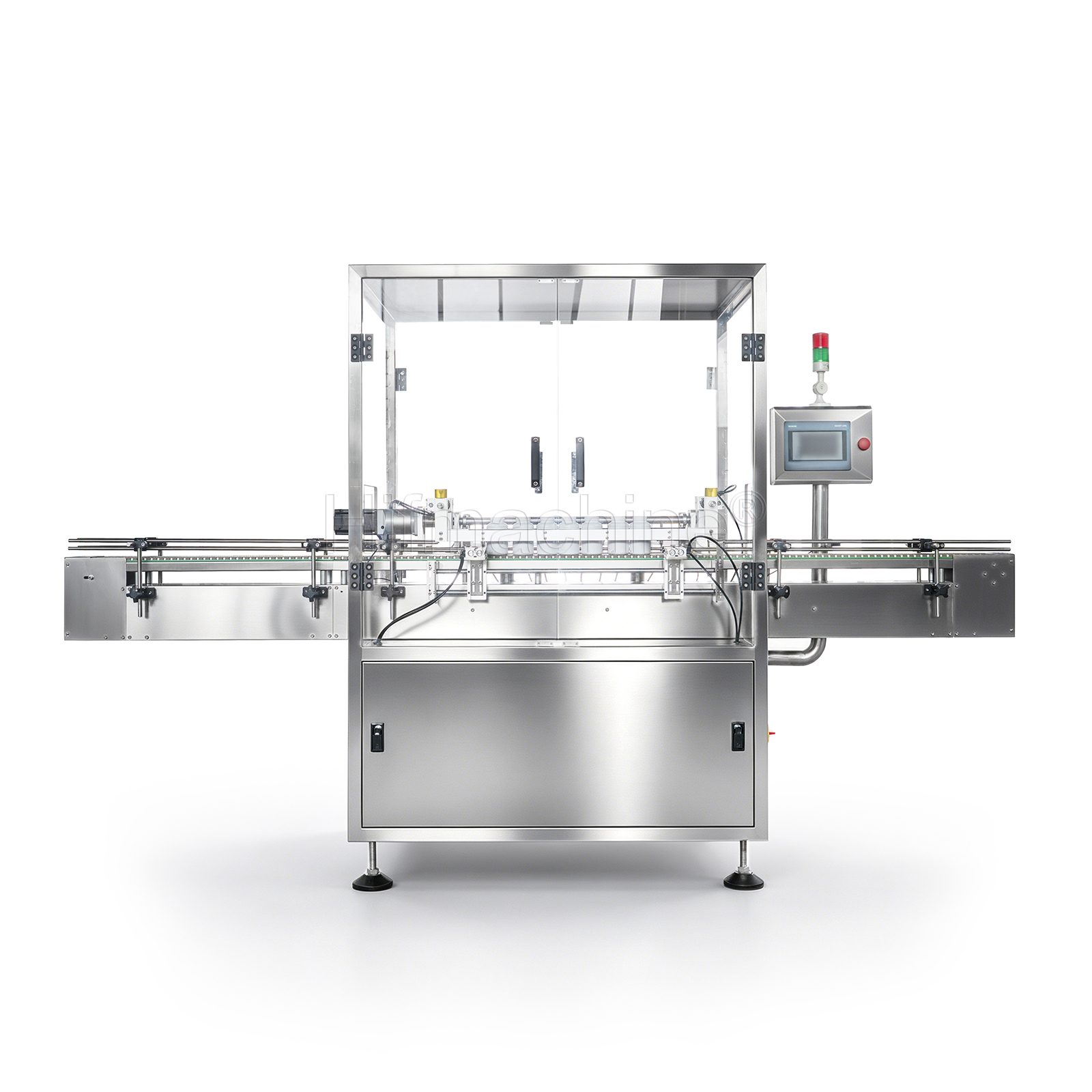

Air Bottle Washing Machine CED-XP10
Air Bottle Washing Machine CED-XP10
By automating the bottle-cleaning process, the CED-XP10 significantly enhances production efficiency while eliminating the risks of cross-contamination and microbial growth associated with manual cleaning methods. This machine can be operated as a standalone unit or integrated seamlessly into a comprehensive production line, working in tandem with unscramblers, tablet counters, desiccant inserters, stopper inserters, capping machines, sealing machines, and labeling machines.
Feature
- Features a simplified structure, stable performance, ease of operation, and low maintenance costs.
- Equipped with a built-in ion generator to effectively neutralize static electricity, reducing dust adhesion and ensuring superior cleaning results.
- Features automatic bottle feeding/discharging and an auto-counting function; the machine remains in standby mode when no bottles are detected.

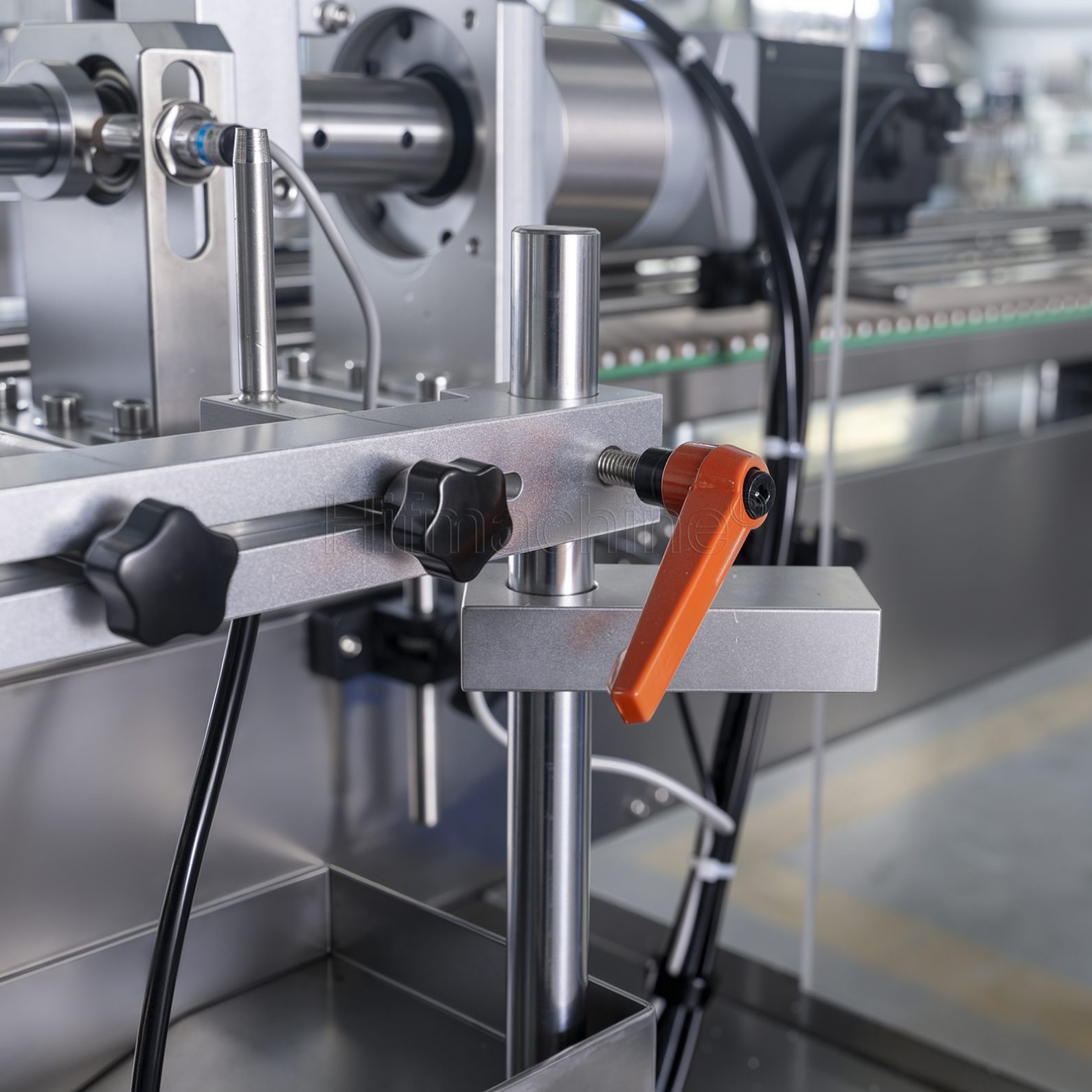

- Designed for high versatility; specification changes are simplified by adjusting the nozzle height and the cylinder baffle position.

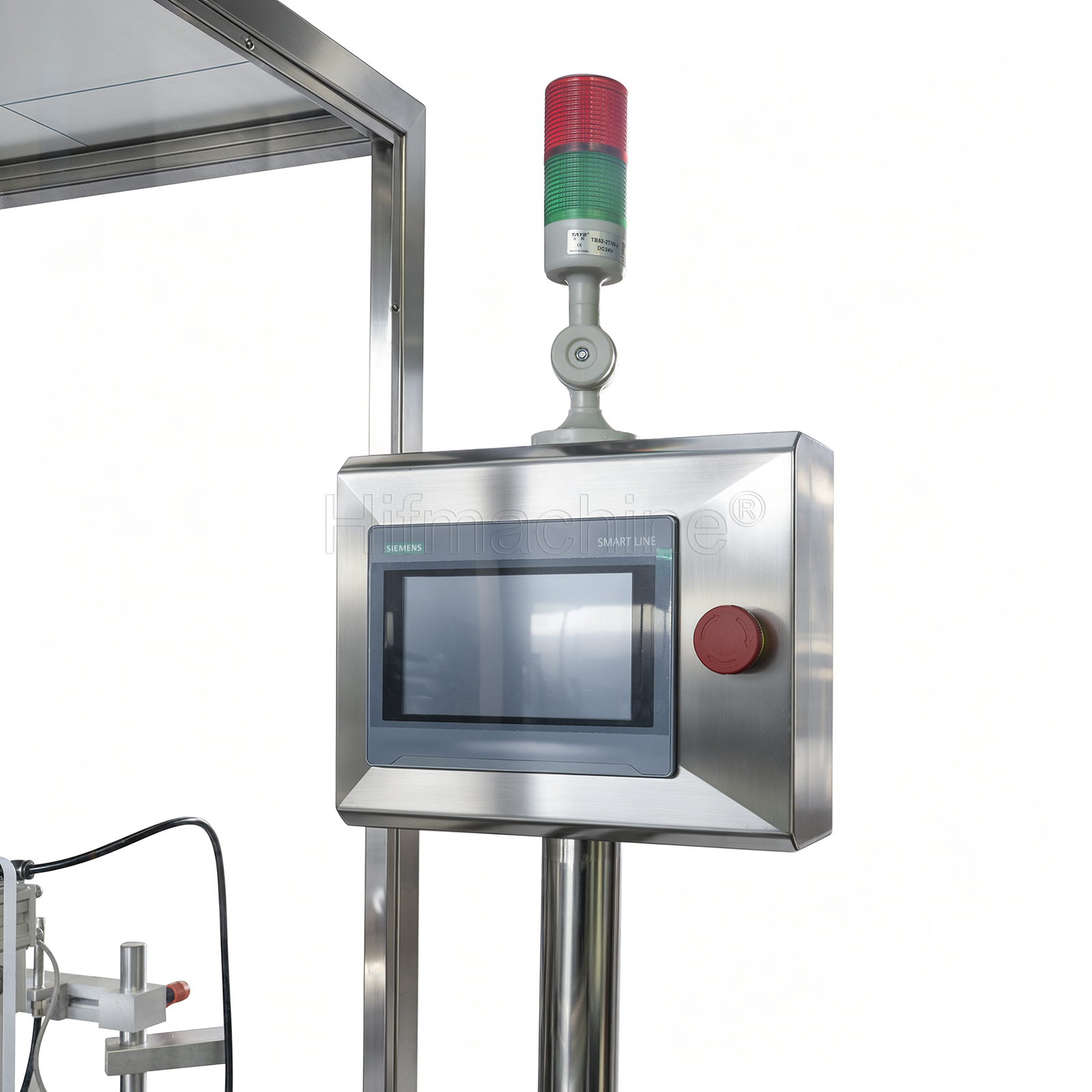

- Managed by an integrated PLC system with an intuitive Human-Machine Interface (HMI) for precise control over the cleaning process.
- Effectively removes micro-particulates from within the bottles
- Captured particles are vacuum-extracted and discharged directly, ensuring they do not circulate or contaminate the production environment.
- Built with 304 stainless steel with a polished finish, ensuring ease of cleaning and compliance with hygiene standards.
- The machine is enclosed in a protective plexiglass housing with safety doors that include an automatic power-off feature upon opening.
| Model | CED-XP10 |
|---|---|
| Applicable Bottle Types | 50–500 ml round and square plastic bottles |
| Production Capacity | 20–60 bottles/min (varies by bottle specifications) |

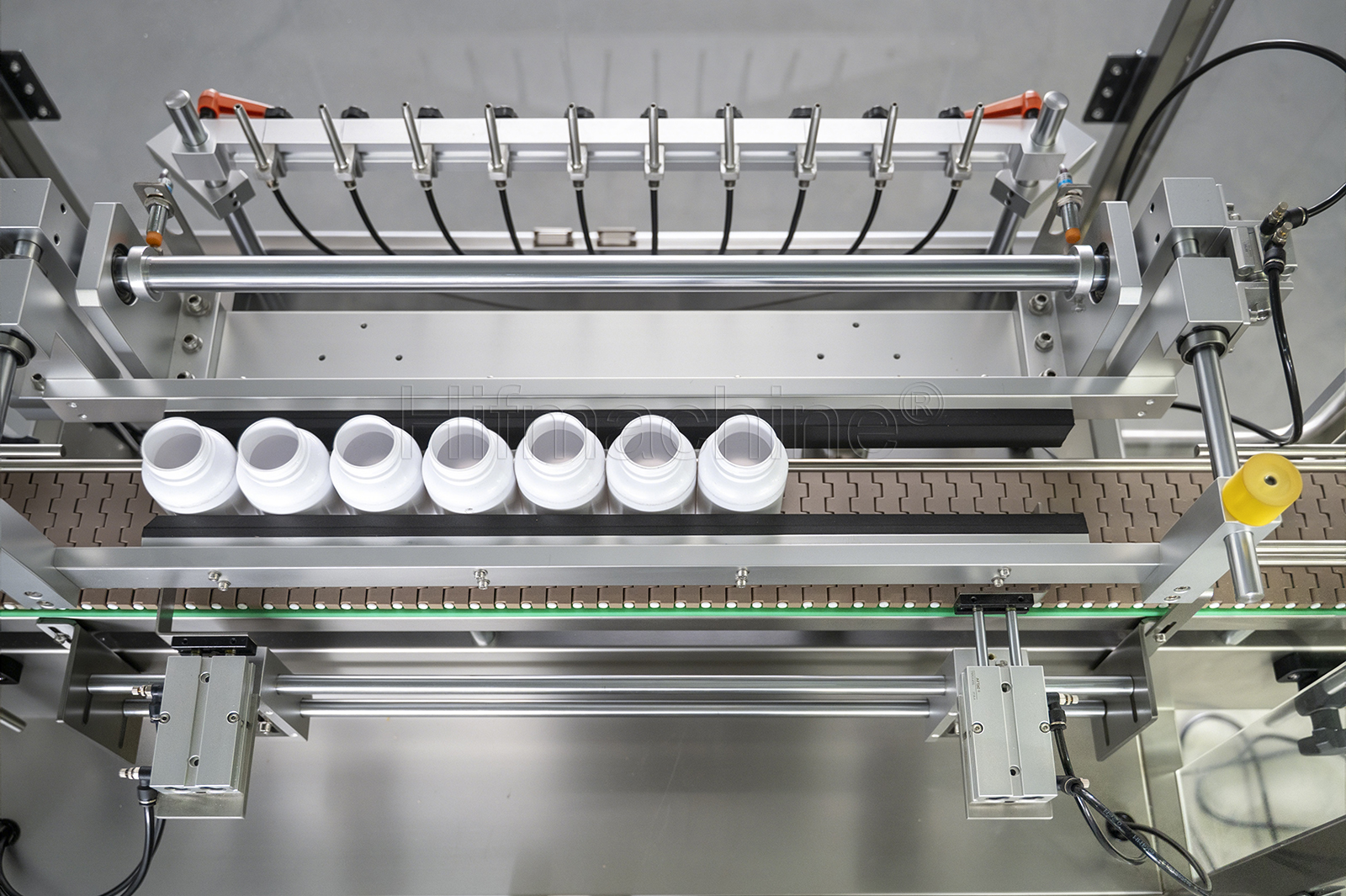

| Cleaning Nozzles | 10 nozzles (customizable based on bottle requirements) |
| Power Supply | AC 220 V / 50 Hz, 0.3 kW |
| Cleaning Duration | 2–5 seconds |
| Operating Air Pressure | 5–8 kg/cm² |
| Air Consumption | 0.8 m³/h |
| Overall Dimensions | 2,600 × 700 × 1,700 mm |
| Weight | 320 kg |
